BE-IIS HAT++

Isolated 100BASE-TX Industrial Ethernet HAT++ for Raspberry Pi

Final Testing

Datasheet Schematic 3D Model Layout GitHub Installer

Standard Ethernet 10BASE-T / 100BASE-TX (10/100 Mbit/s) enables seamless integration into existing LAN infrastructures for industrial and embedded systems.

This HAT enables LAN communication based on the KSZ8851 Ethernet controller and, as part of the BE-IIS HAT++ ecosystem, is stackable with other HATs from the portfolio for seamless system expansion and simplified system integration.

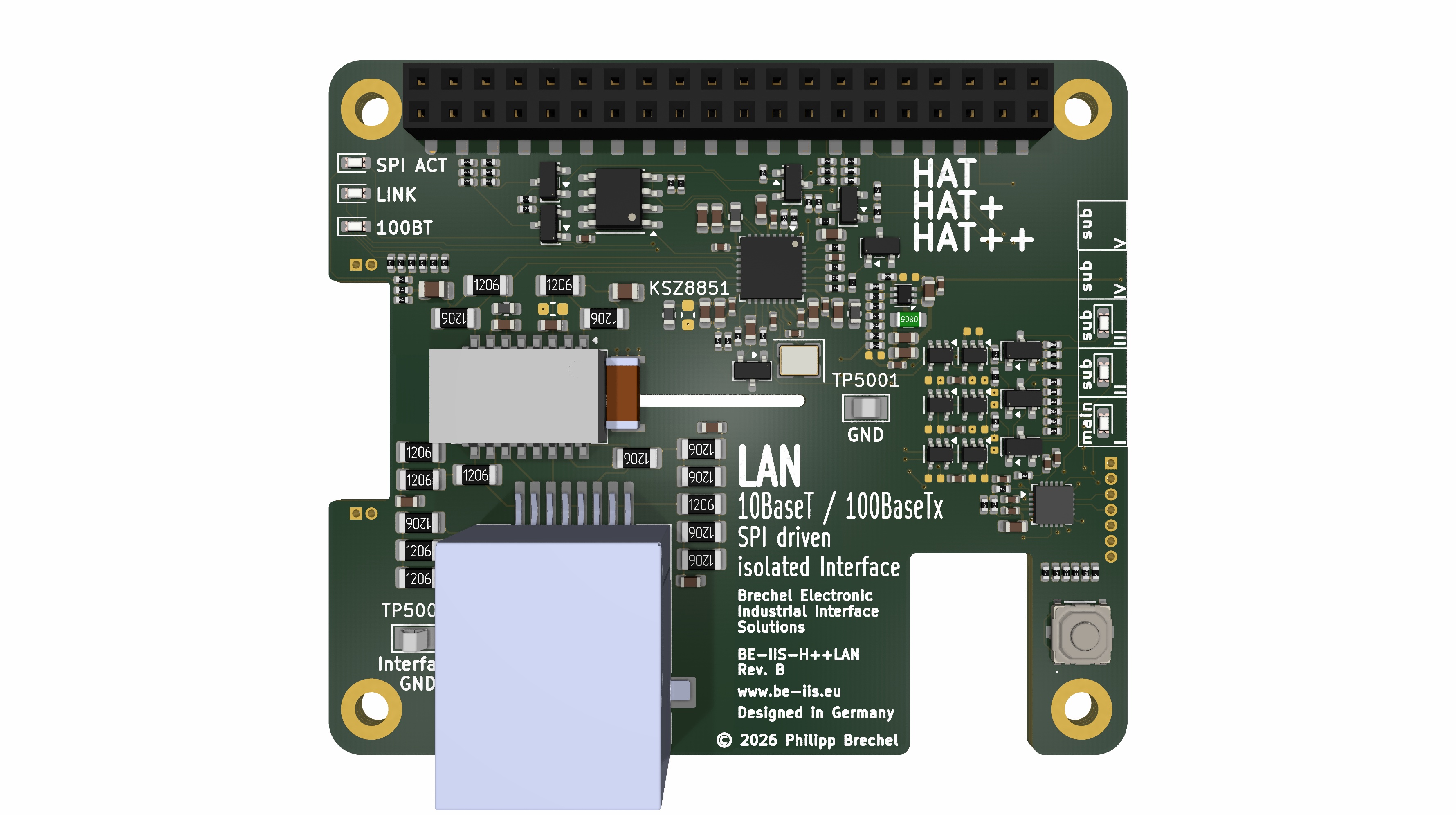

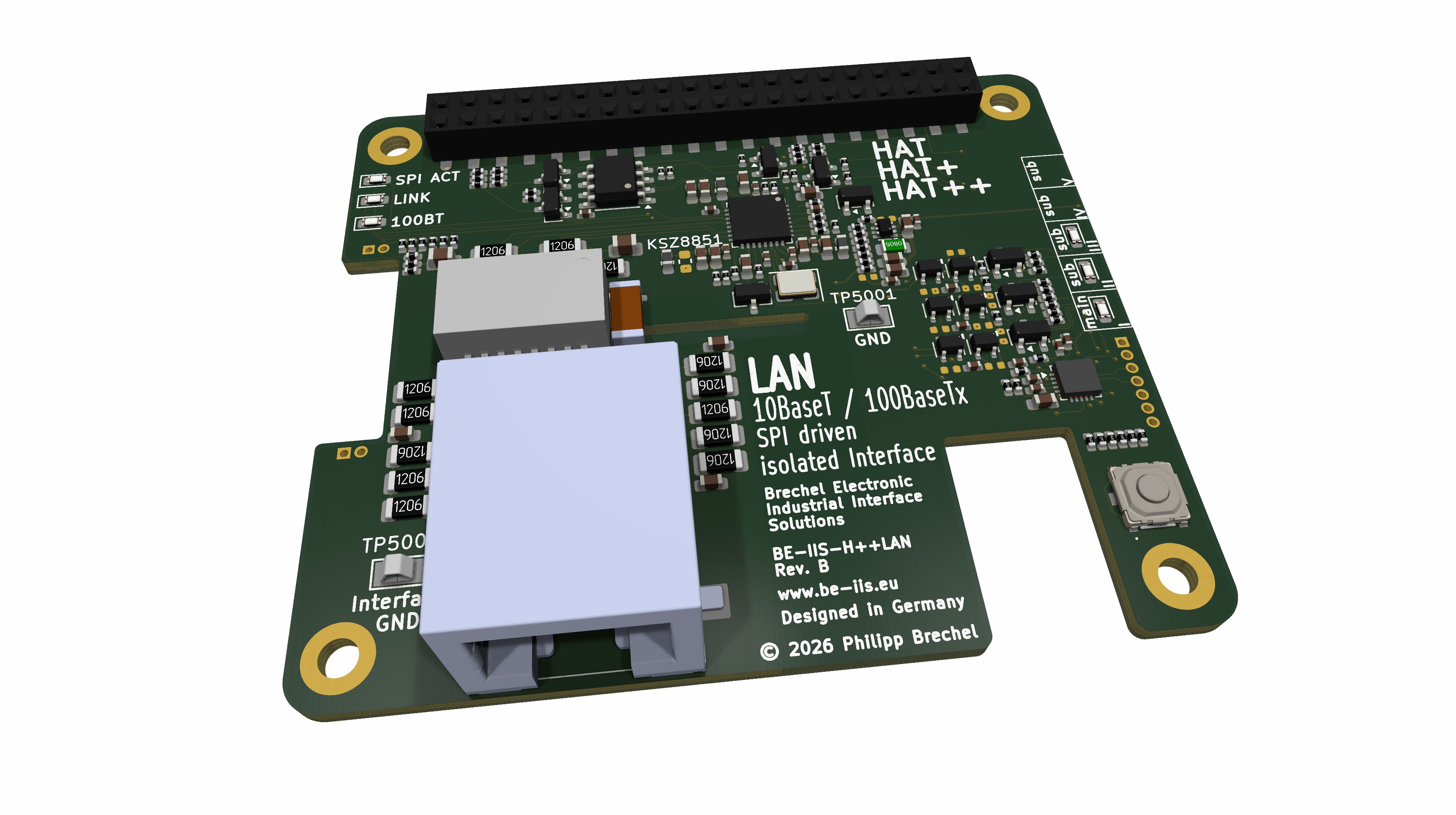

Isolated 100BASE-TX Industrial Ethernet HAT++ for Raspberry Pi

Quick Facts

Order Code
BE-IIS-HPP-LAN

Revision
B

Status
Final Testing

Overlay
BE-IIS-HPP-LAN-I

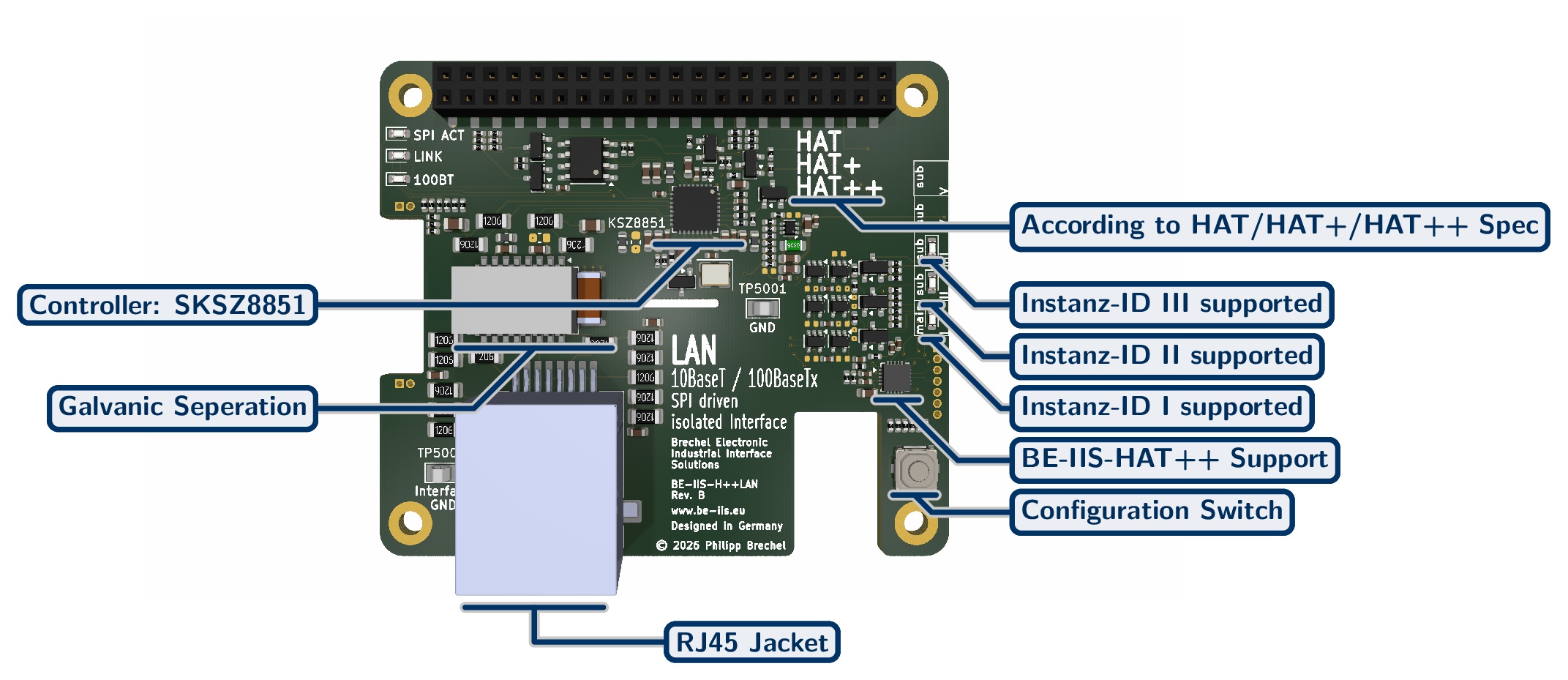

Key Features

10BASE-T / 100BASE-TX Ethernet, up to 100 Mbit/s
KSZ8851 Ethernet controller (SPI)
Integrated MAC + PHY
RJ45 interface
EEPROM for MAC-ADR
RSP HAT+ compliant (2024)
Stackable (BE-IIS-HAT++)

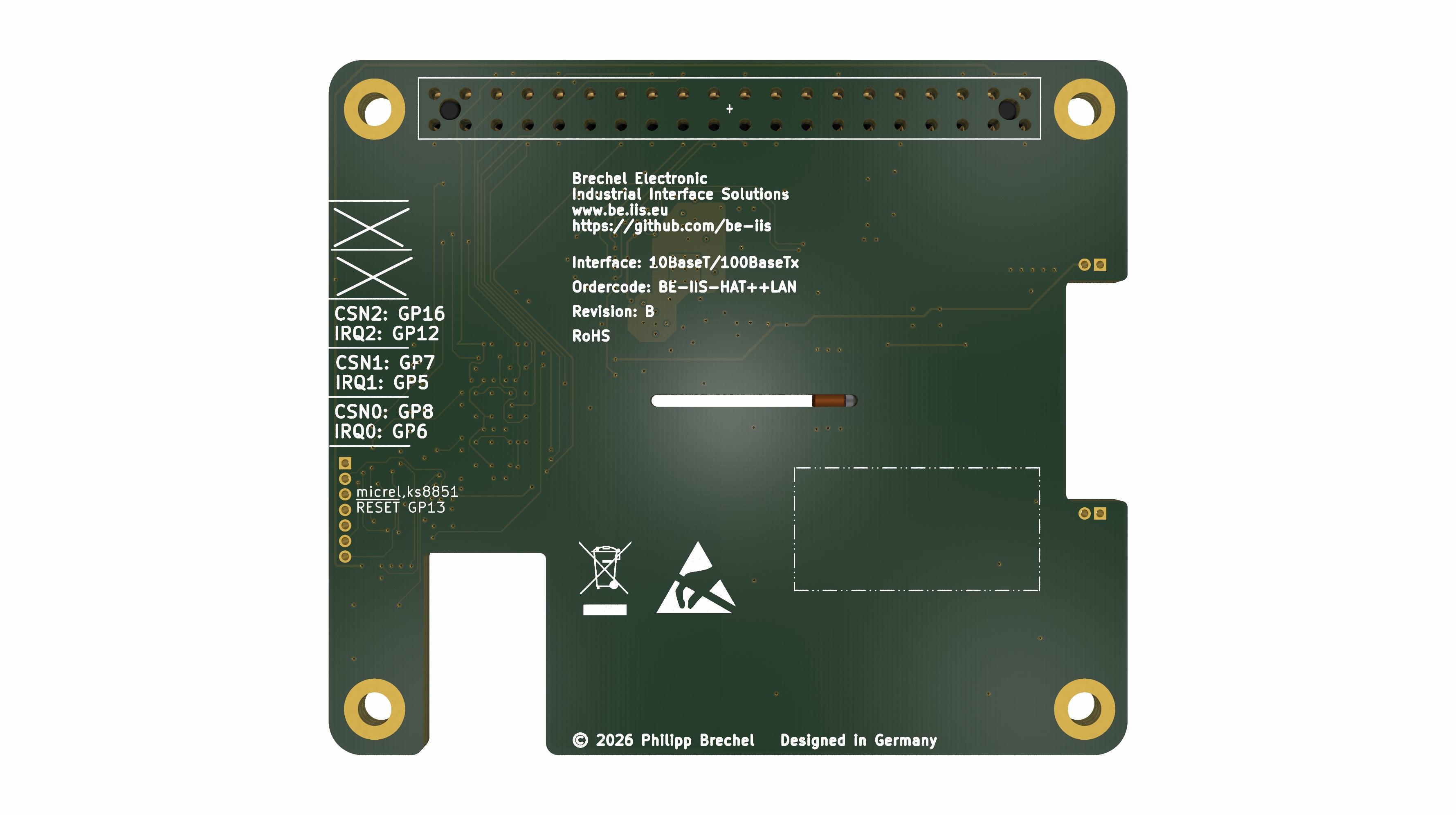

Configurable CS & IRQ
Auto-Negotiation support
Compatible with standard LAN infrastructure
RoHS compliant
Quality component suppliers

Applications

Ethernet / LAN network evaluation
Debug Interfaces
Embedded Ethernet prototyping
Industrial network integration
Gateway and protocol converter development
Education and laboratory use

Raspberry Pi Compatibility

Model	32-bit	64-bit
Raspberry Pi 2	✓
Raspberry Pi 3	✓	✓
Raspberry Pi 4	✓	✓
Raspberry Pi 5	✓	✓
Raspberry Pi Zero	✓
Raspberry Pi Zero 2 W	✓	✓

Compatibility depends on the installed operating system, kernel version and enabled interfaces.

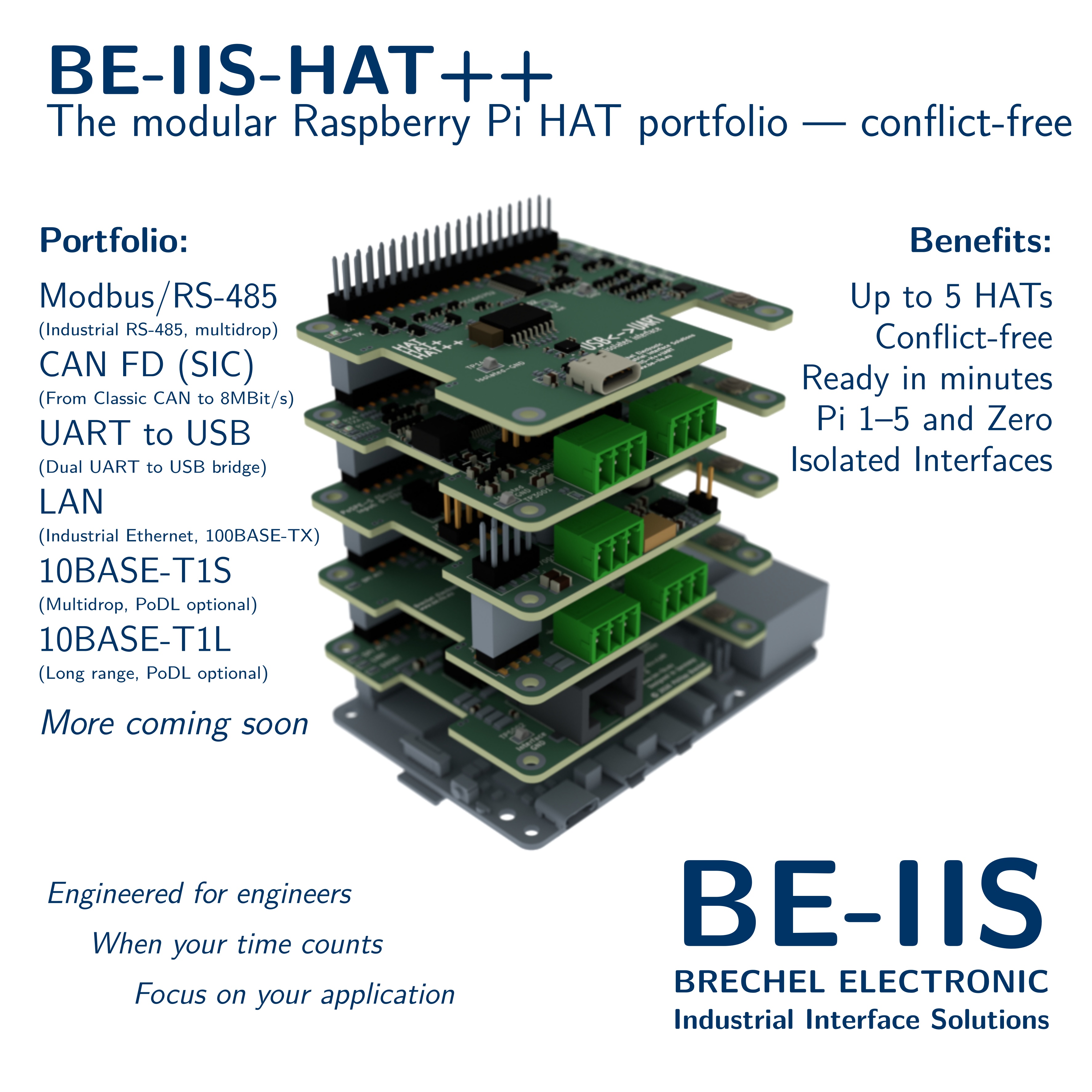

HAT Compatibility Level

Level	Description	Configuration
HAT	Standard Raspberry Pi HAT behaviour	3 configurable hardware configurations
HAT+	Raspberry Pi HAT+ auto-detection mechanism	Instance ID 1 configurable
HAT++	BE-IIS stackability and full board detection concept	3 configurable hardware configurations
