Industrial Raspberry Pi HATs

Interfaces and cameras for your system. Find features, compatibility and documentation on each product page.

BE-IIS ships from Germany to customers worldwide

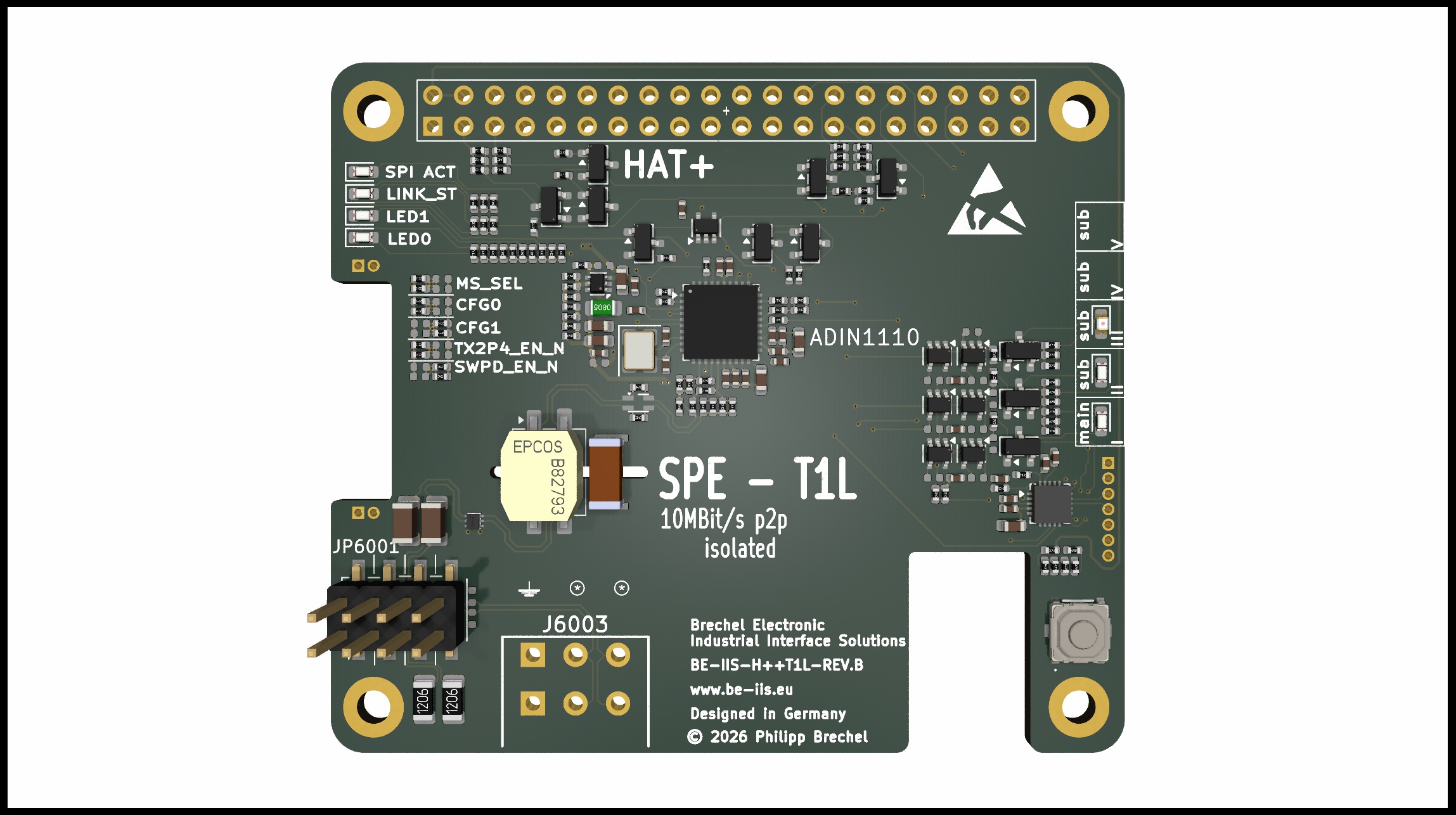

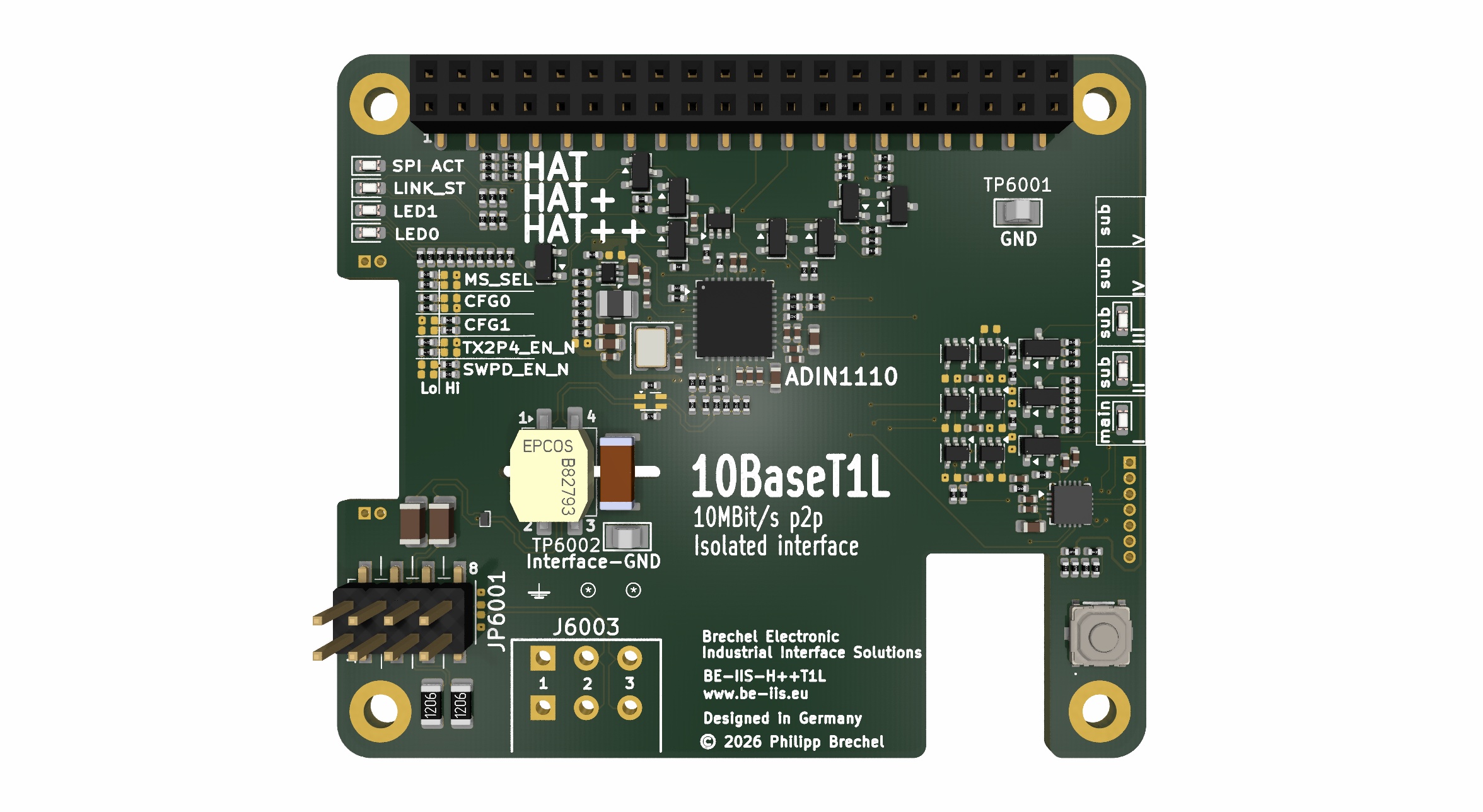

BE-IIS-HPP-T1L

The 10BASE-T1L Industrial Ethernet HAT is a Raspberry Pi HAT+ compliant Single Pair Ethernet interface board in accordance with IEEE 802.3cg.

View Product

LEONI Dacar 546 – 100 Ω Data Cable

Industrial data cable suitable for 10BASE-T1S and 10BASE-T1L Single Pair Ethernet applications. Characteristic impedance: 100 ± 10 Ω. Conductor cross-section: 2 × 0.35 mm². Sold in 10 m increments and supplied as one continuous, uncut length without connectors. Online orders are limited to 200 m. For longer lengths, please contact BE-IIS.

View Product

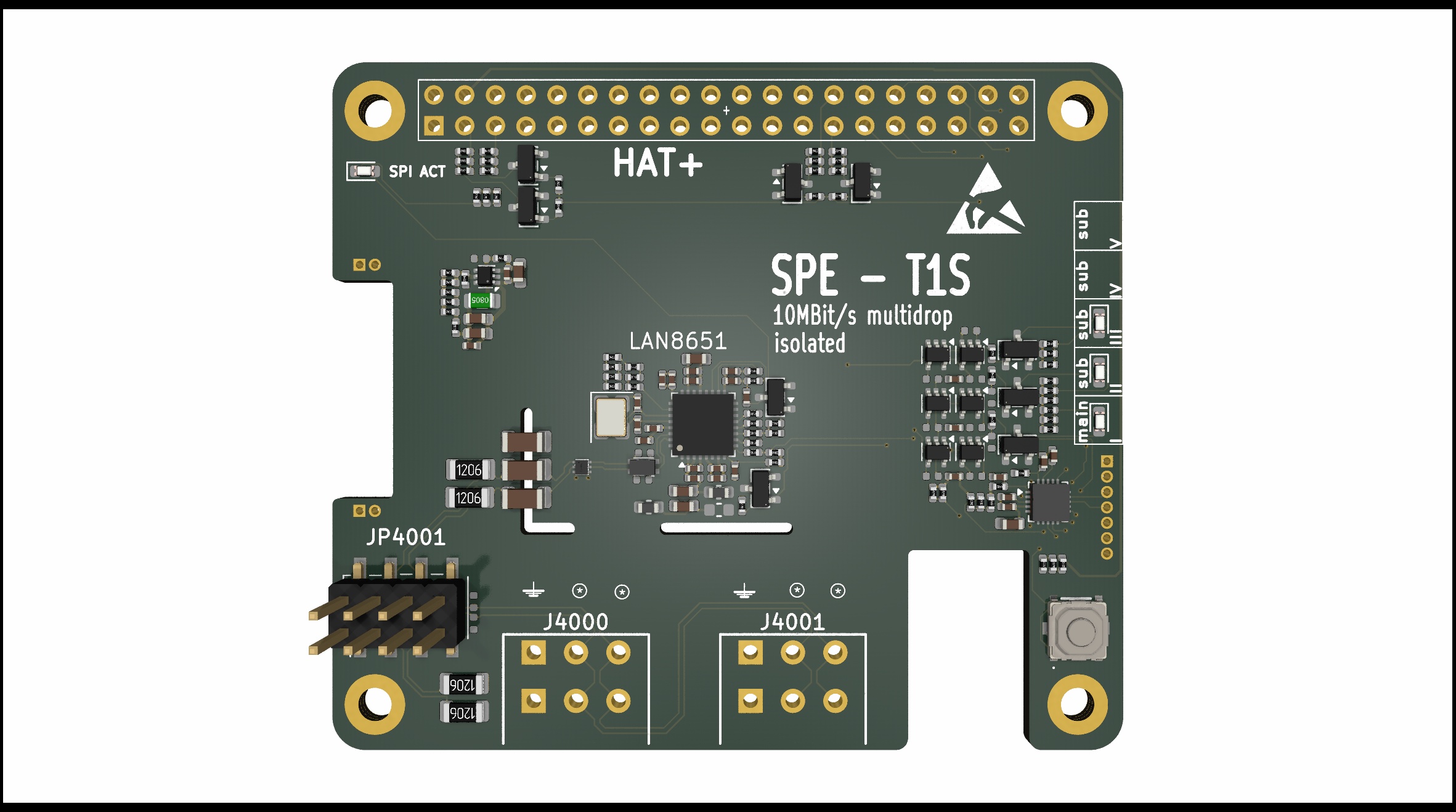

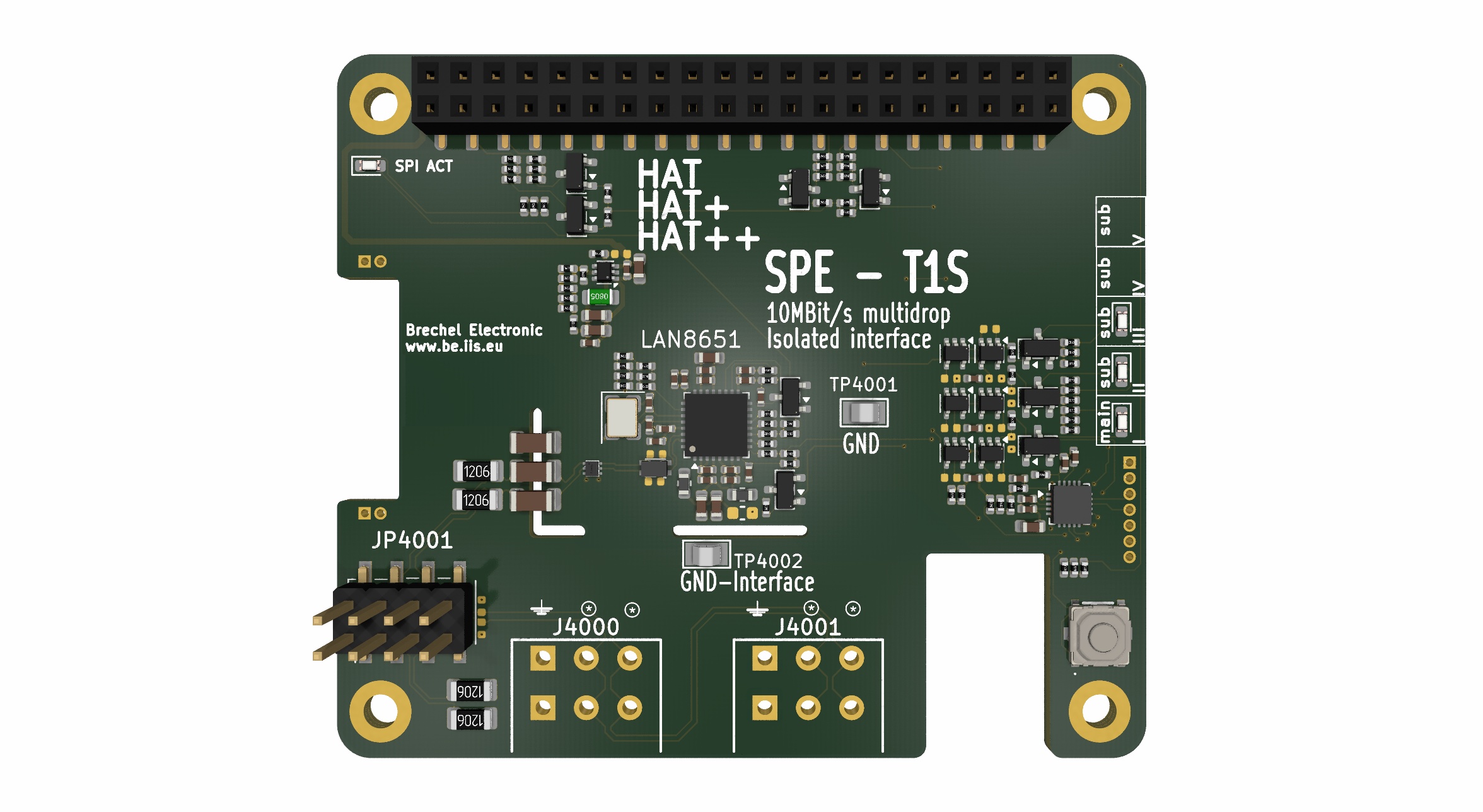

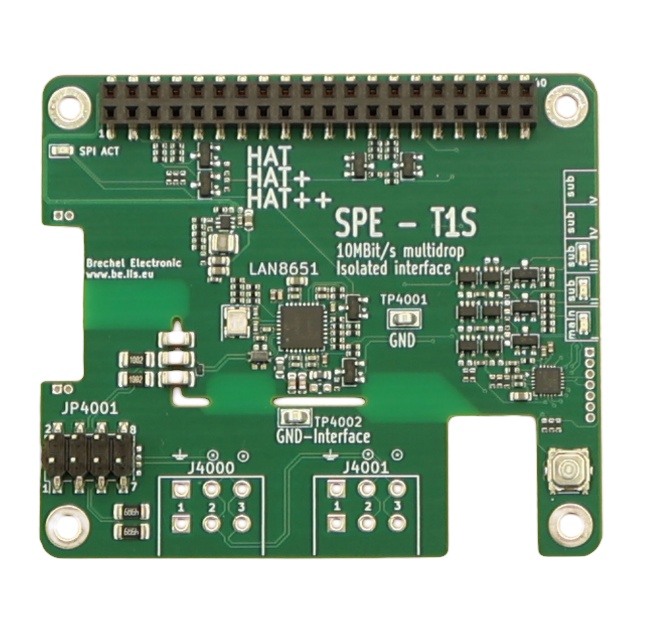

Isolated 10BASE-T1S Industrial Ethernet HAT++ for Raspberry Pi

The 10BASE-T1S Industrial Ethernet HAT is a Raspberry Pi HAT+ compliant Single Pair Ethernet interface board in accordance with IEEE 802.3cg.

View Product

PCB header datasheet (691378110020)

Two-piece 20-pin terminal connector set intended as a replacement for the terminal connection on the BE-IIS-HPP-ADC. The set includes one screwless push-in cable plug and one matching through-hole PCB header from Würth Elektronik. 3.50 mm pitch, dual-row arrangement. Verify PCB footprint compatibility before replacing a soldered header.

View Product

Datasheet – PCB Header (691305130003)

Three-position pluggable terminal connector set, consisting of one screwless push-in cable plug and one matching THT PCB header. Suitable for wiring industrial interfaces such as 10BASE-T1S, 10BASE-T1L, Modbus/RS-485 and CAN where a compatible 3.5 mm terminal connector is used. Supplied as a set of two components. Please verify the PCB footprint before using the header as a replacement.

View Product

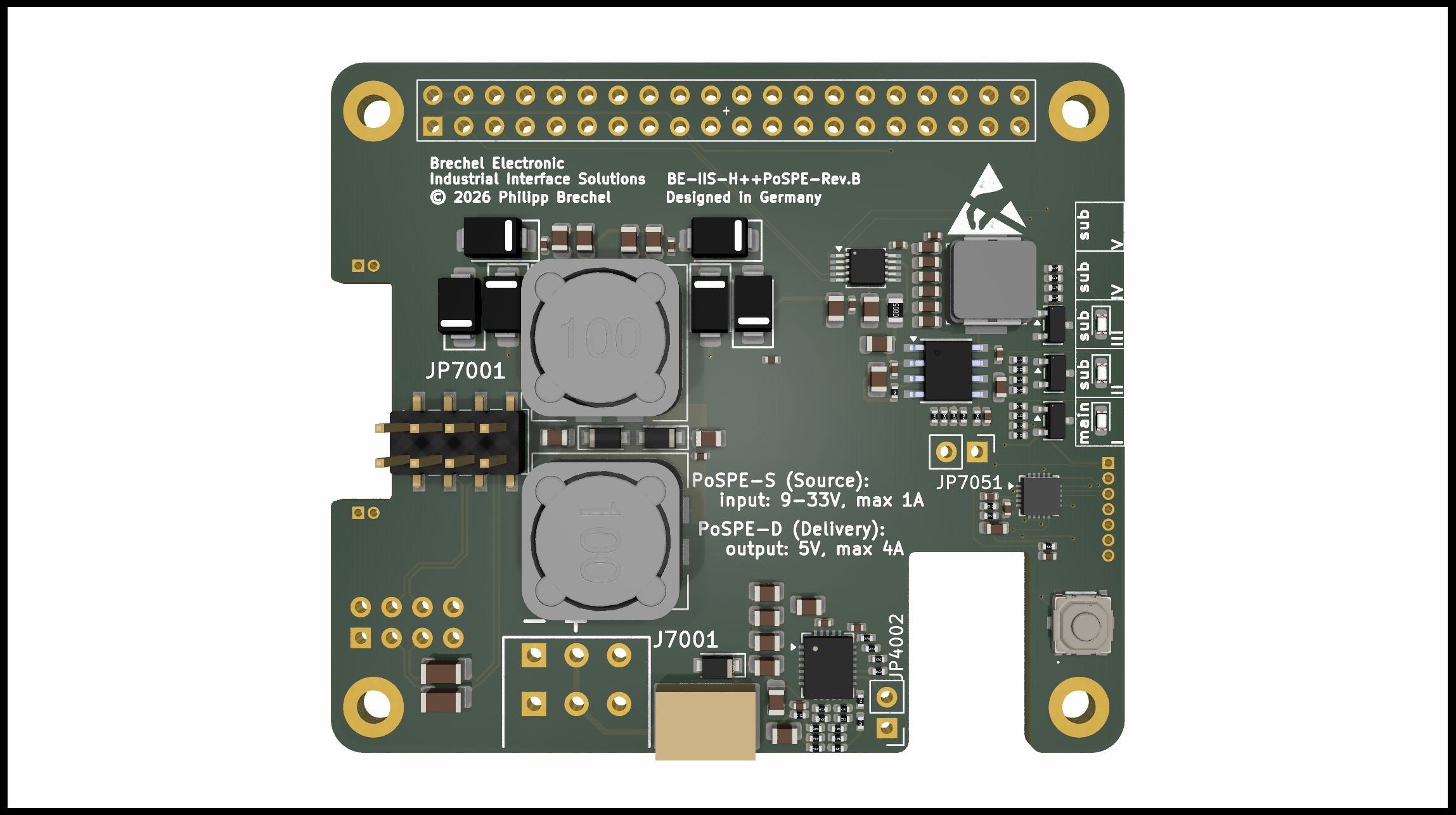

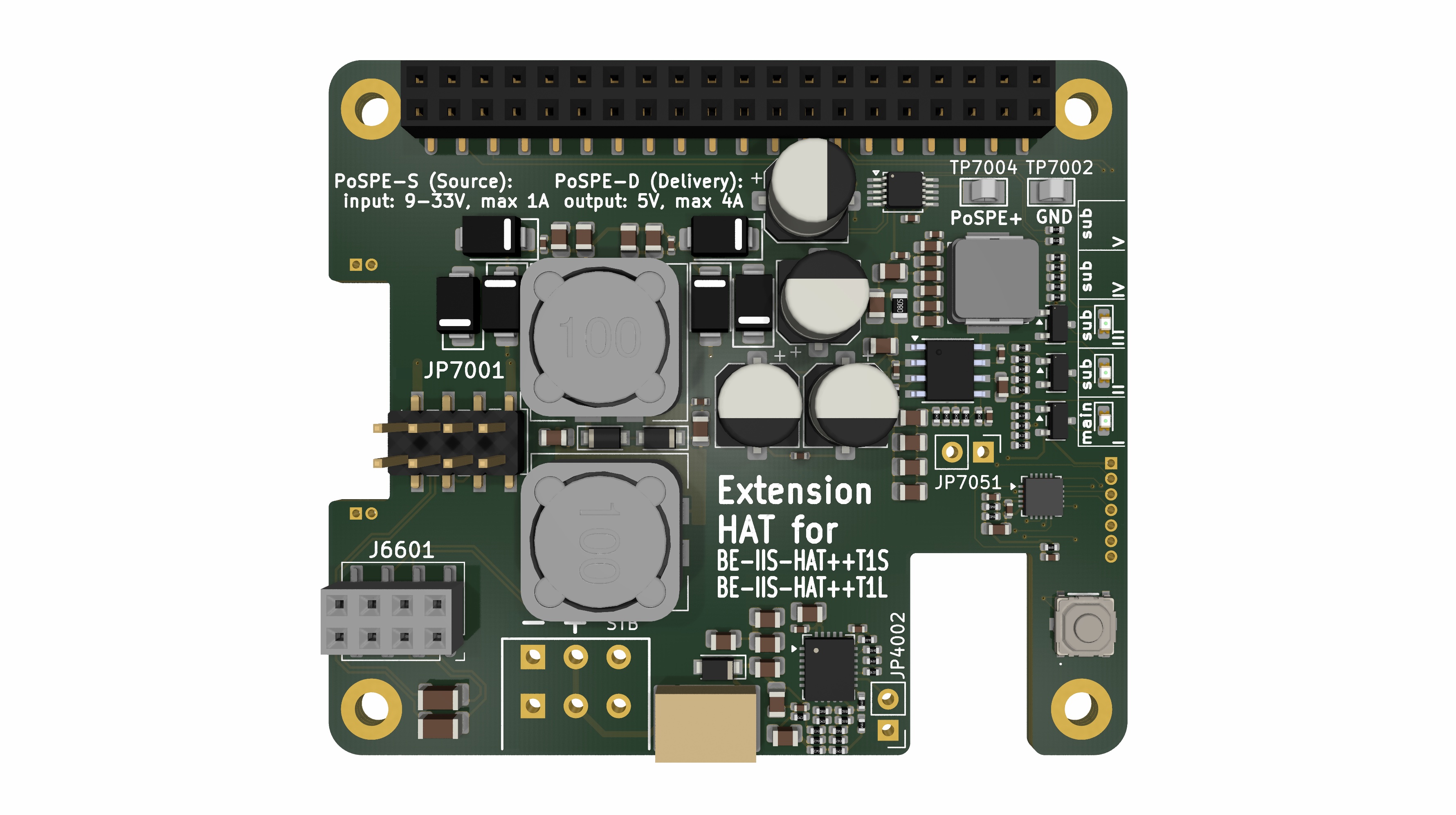

Power over SPE (PoSPE) Industrial HAT++ Add-on for Raspberry Pi

The PoSPE HAT is a Raspberry Pi HAT+ compliant interface board providing DC power coupling to the Single Pair Ethernet data line via an integrated low-pass filter. It supports current measurement via I²C, includes voltage and current protection for the power source, and provides a regulated +5 V supply for the Raspberry Pi.

View Product

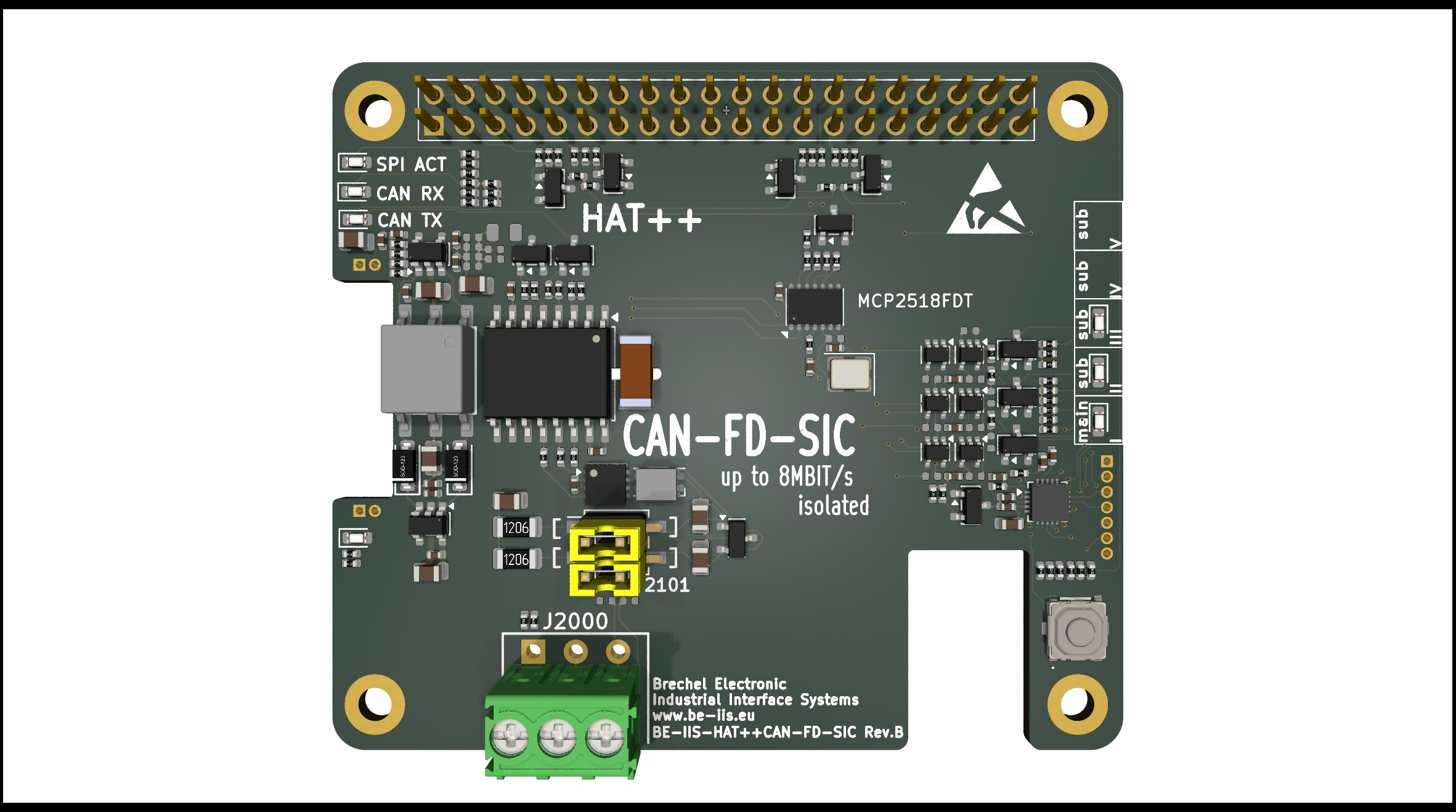

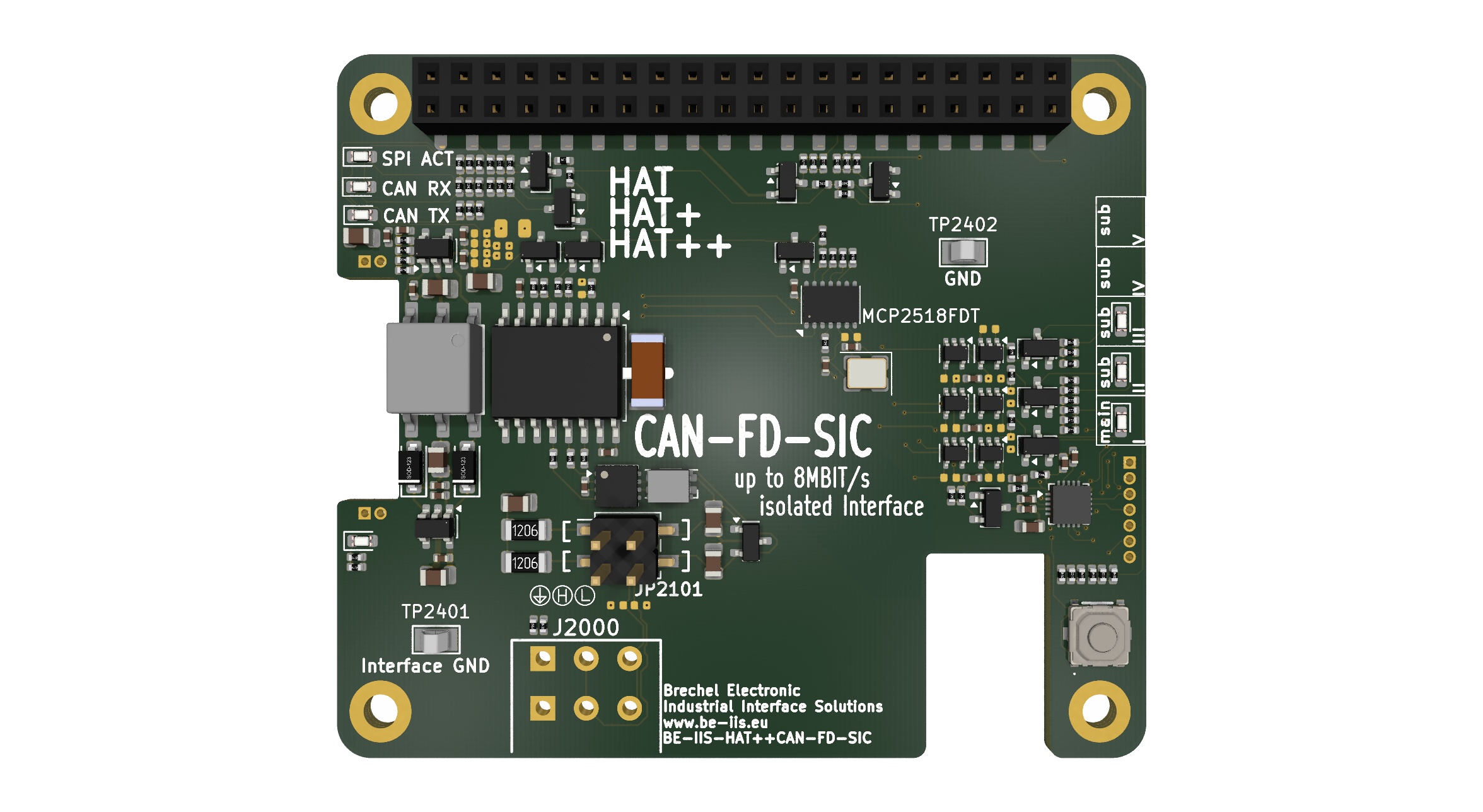

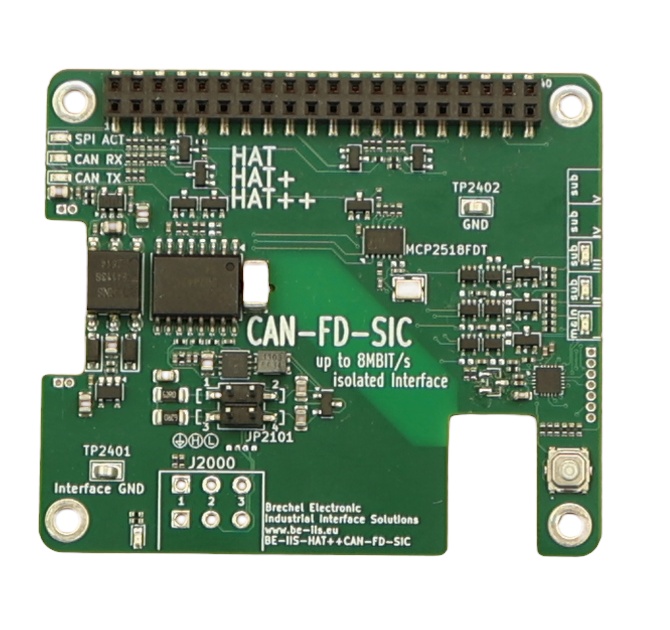

Isolated CAN FD (SIC) Industrial HAT++ for Raspberry Pi

The CAN-FD Industrial HAT is a Raspberry Pi HAT+ compliant interface board supporting CAN-FD with SIC according to ISO 11898.

View Product

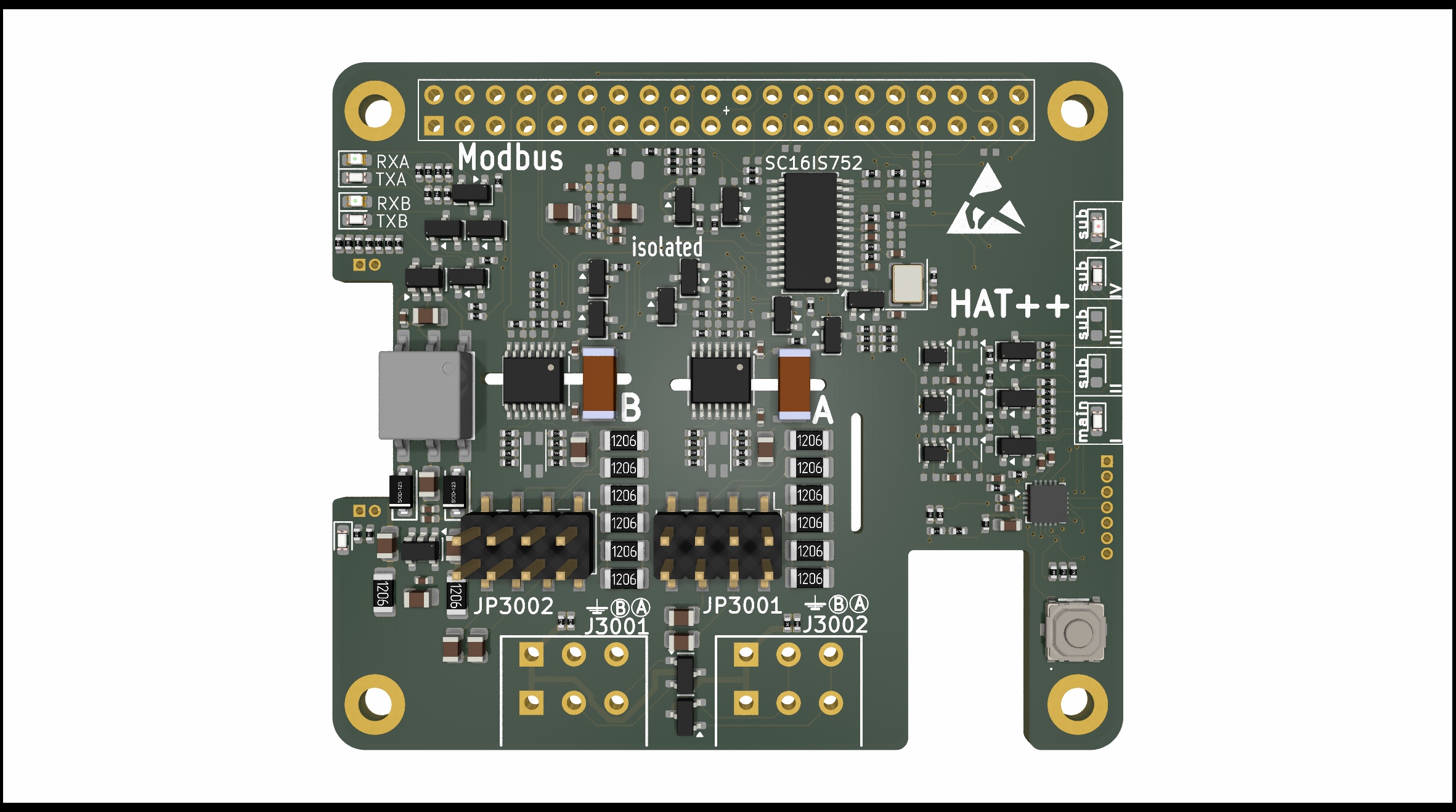

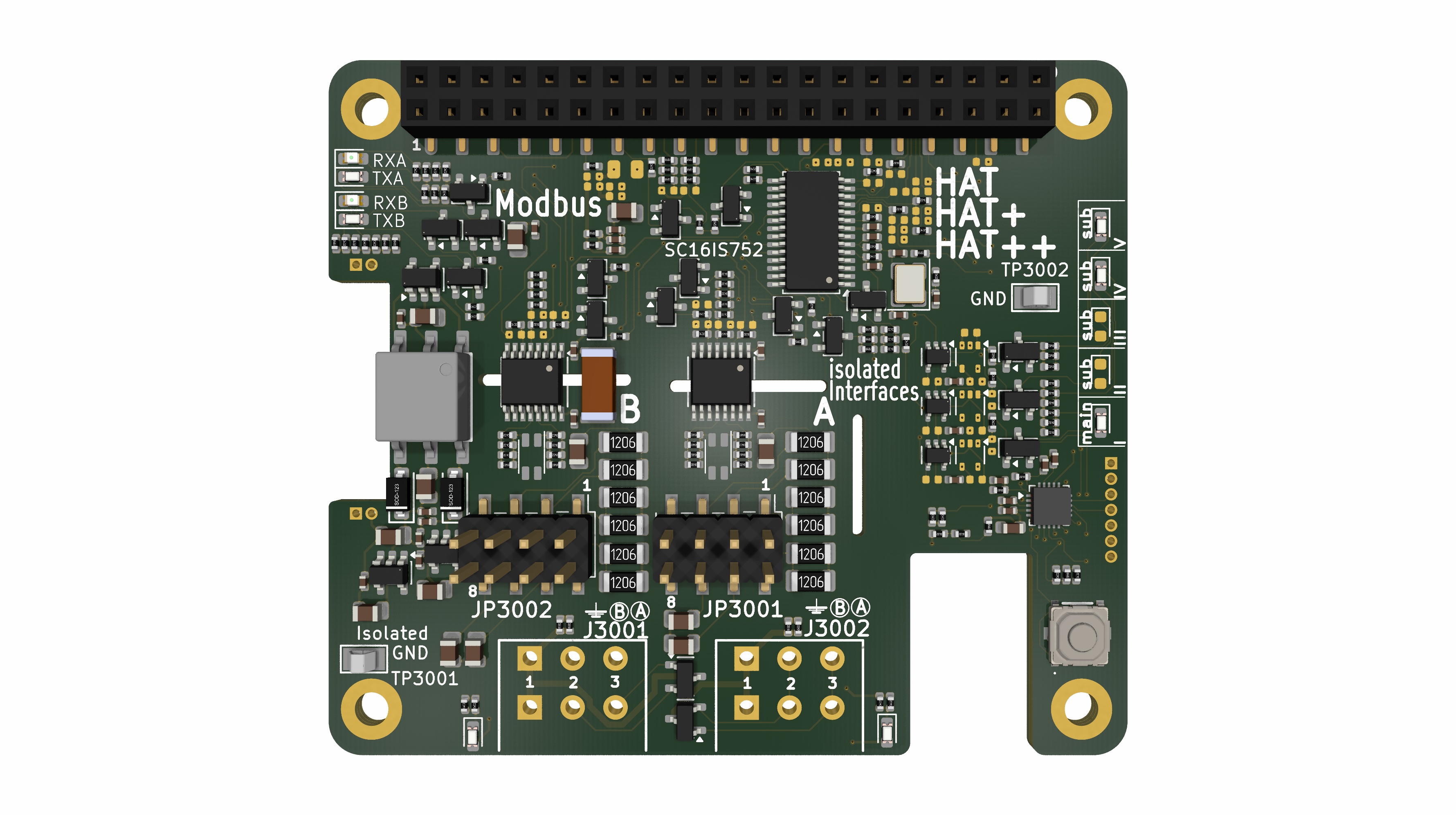

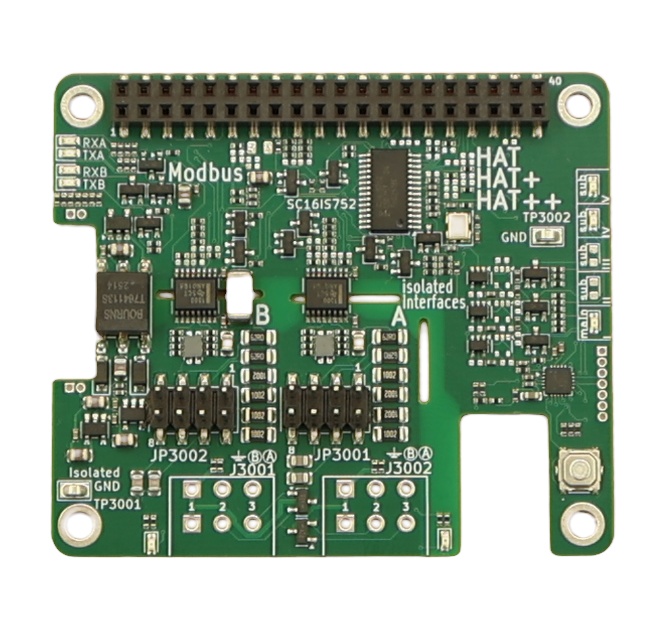

Isolated Dual RS-485 (Modbus) Industrial HAT++ for Raspberry Pi

The MODBUS Industrial HAT is a Raspberry Pi HAT+ compliant interface board supporting Modbus RTU/ASCII over RS-485 in accordance with TIA/EIA-485-A.

View Product

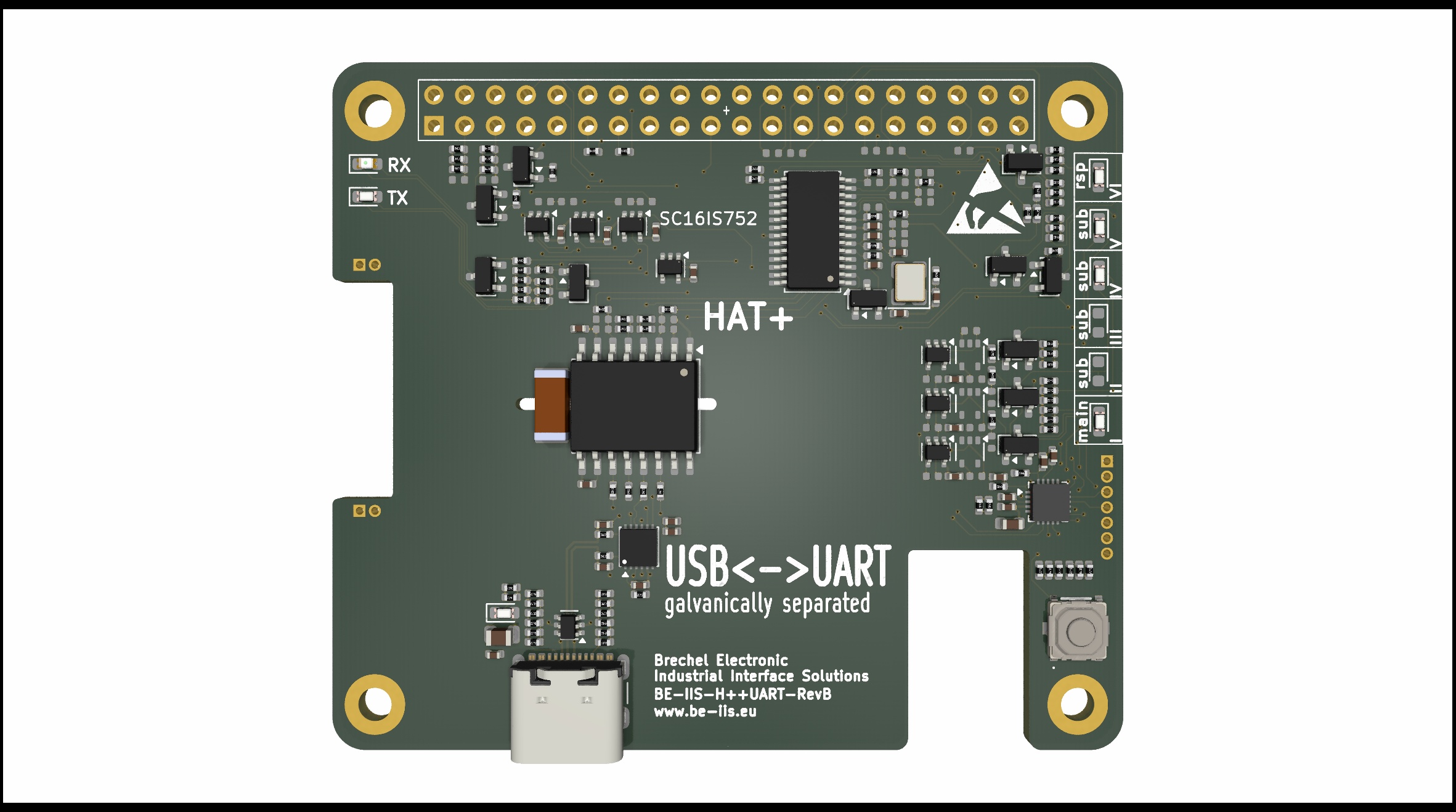

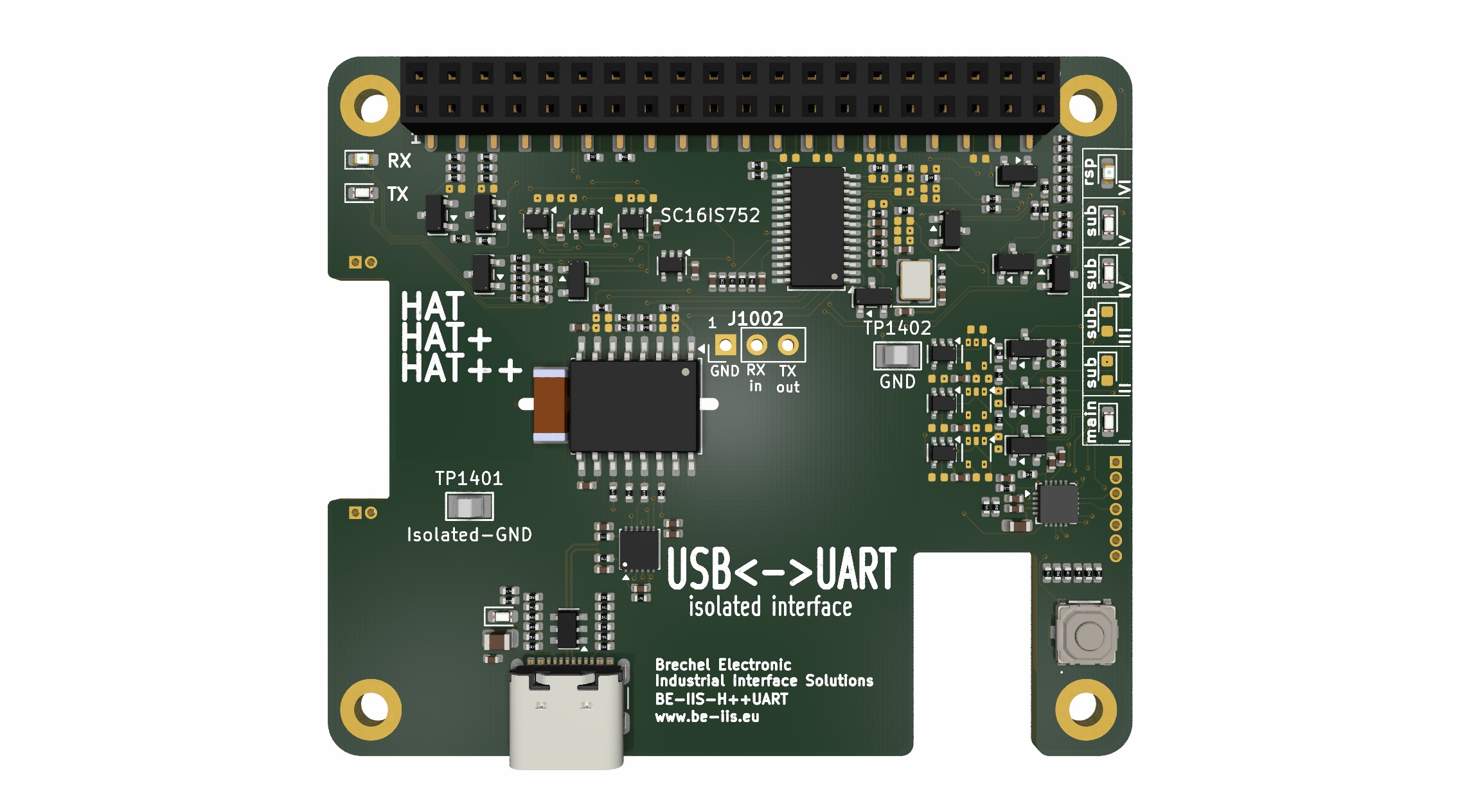

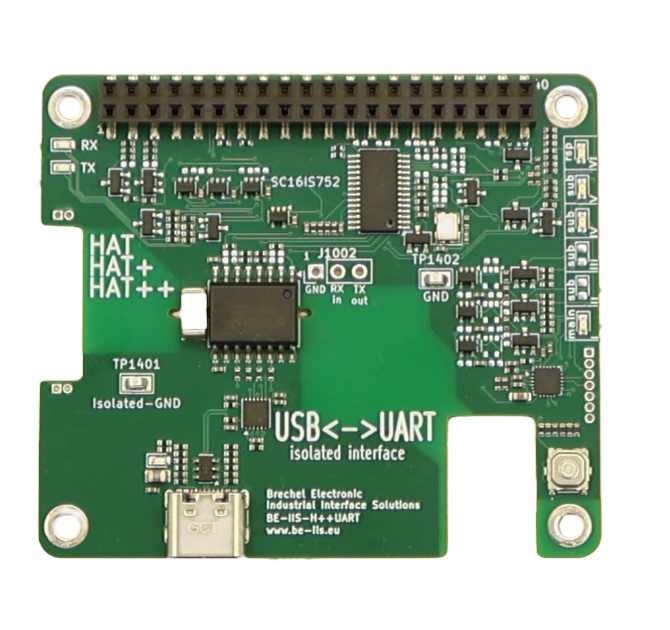

Isolated USB to Dual UART Industrial HAT++ for Raspberry Pi

The UART Industrial HAT is a Raspberry Pi HAT+ compliant board providing reliable UART access for debugging, service, or additional USB-to-UART interfaces.

View Product

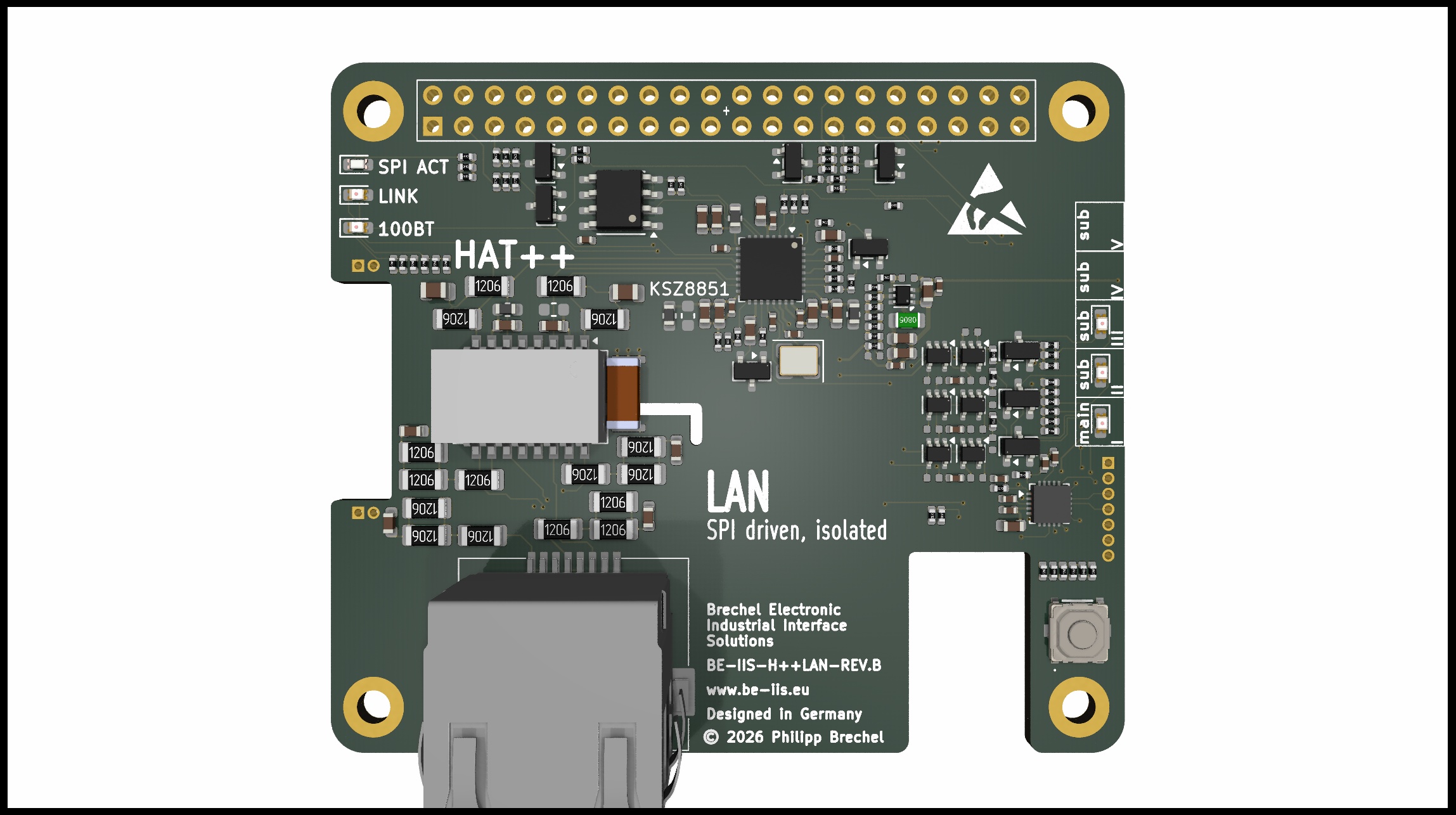

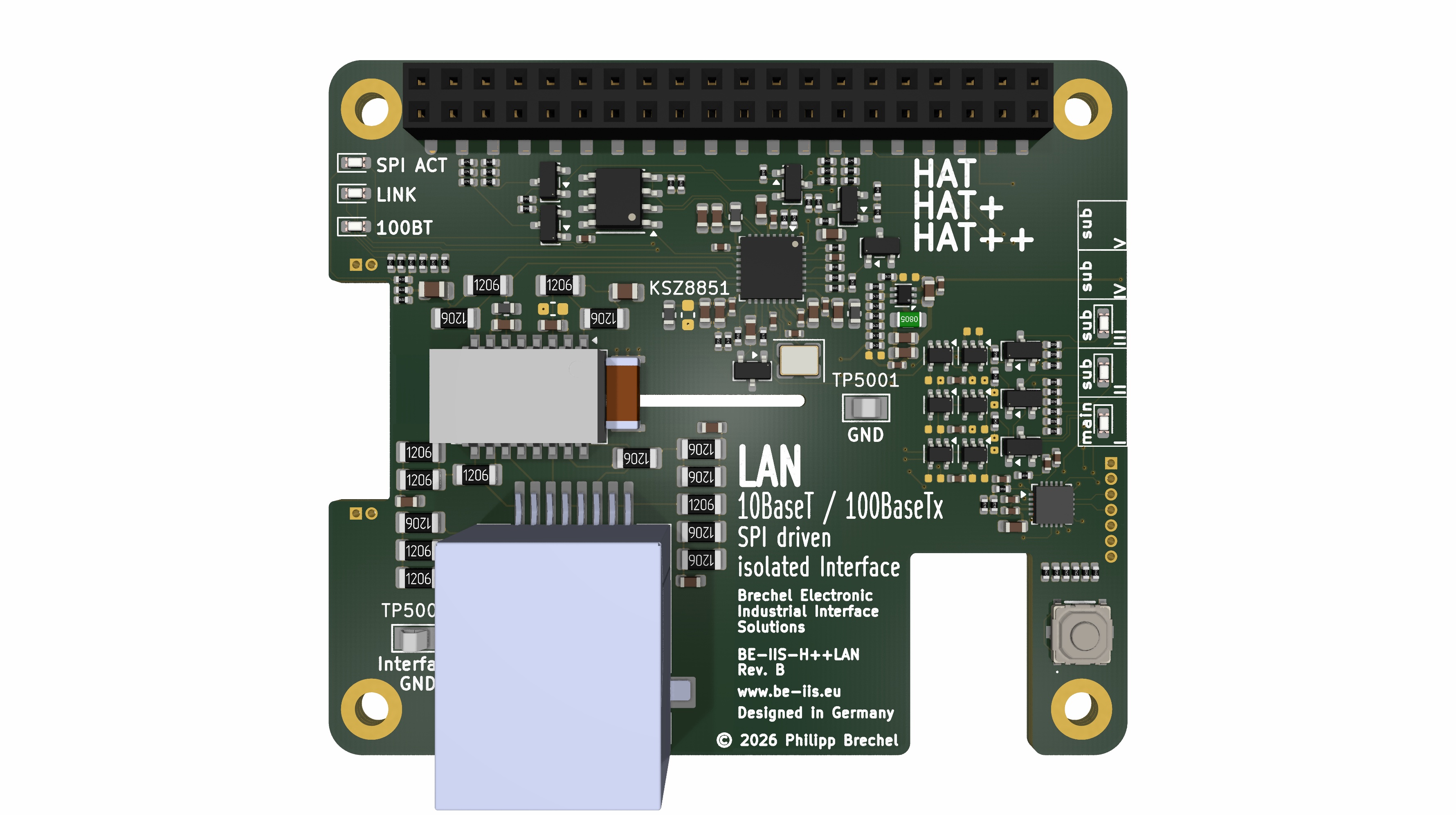

Isolated 100BASE-TX Industrial Ethernet HAT++ for Raspberry Pi

The Ethernet Industrial HAT is a Raspberry Pi HAT+ compliant interface board providing standard 10BASE-T / 100BASE-TX connectivity according to IEEE 802.3.

View Product

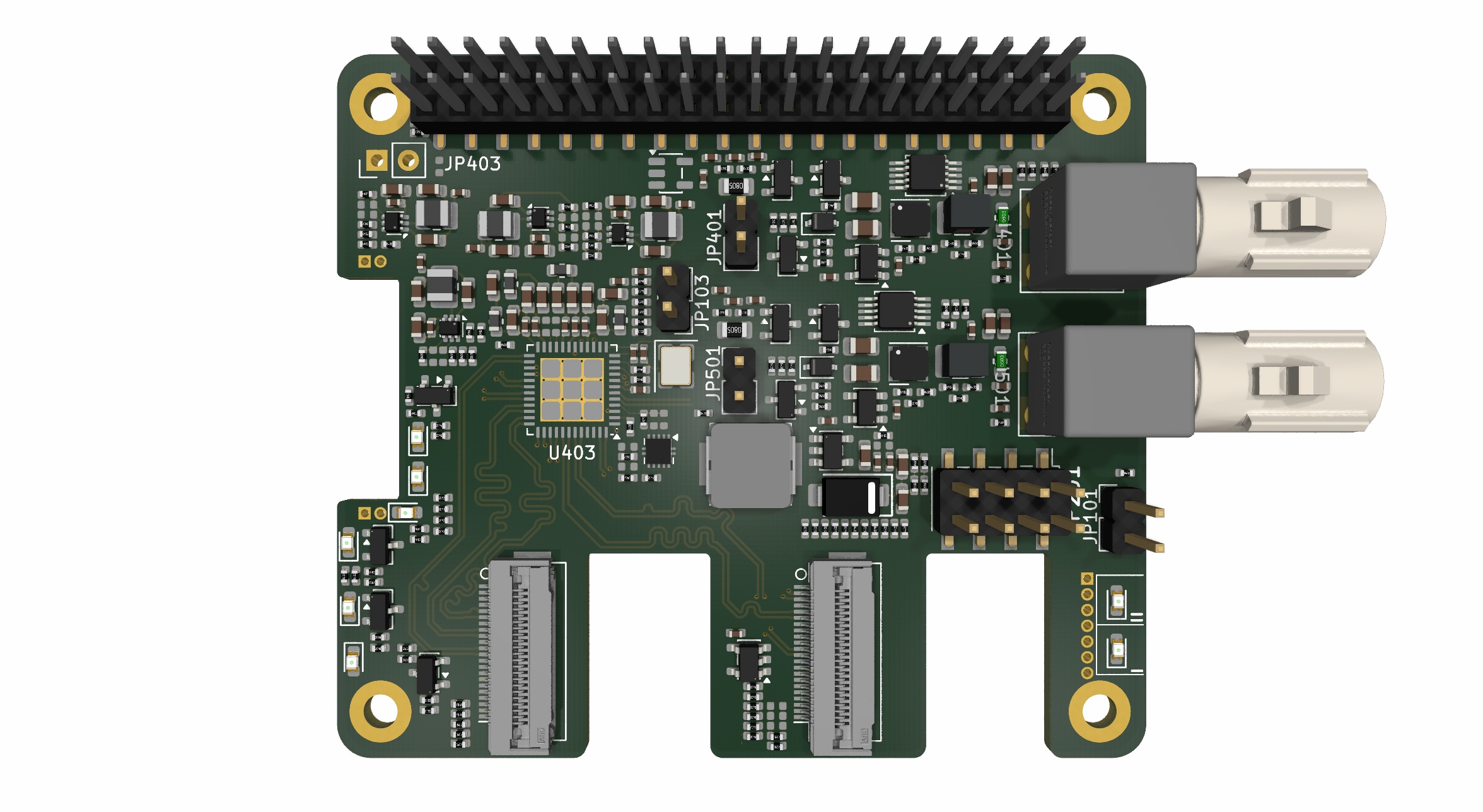

BE-IIS-GMSL2-2CAM

The HAT connects to CSI port 1 and 2 of the Raspberry Pi, or compatible CSI-2 interface of another single-board computer.

View Product

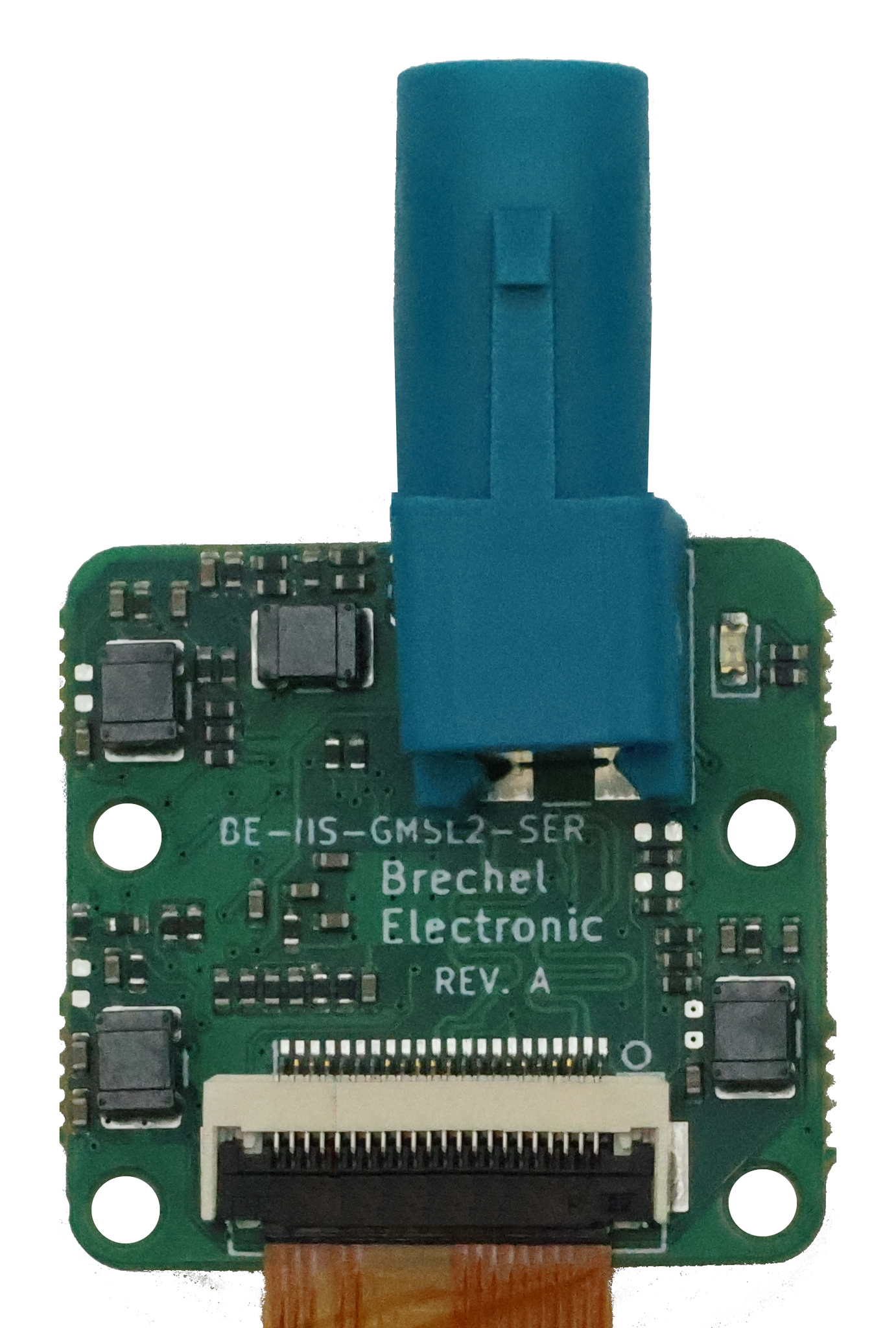

GMSL2 Serializer Camera Adapter Board

The BE-IIS-GMSL-SER connects directly to one compatible CSI-2 camera module through its 22-pin FFC/FPC connector. It serializes the CSI-2 video stream onto a GMSL2 coaxial link and routes I2C control, camera reset, and camera-enable signals between the camera and the remote deserializer.

View Product

Isolated 10BASE-T1L Industrial Ethernet HAT++ Switch for Raspberry Pi
