Isolated 10BASE-T1S Industrial Ethernet HAT++ for Raspberry Pi

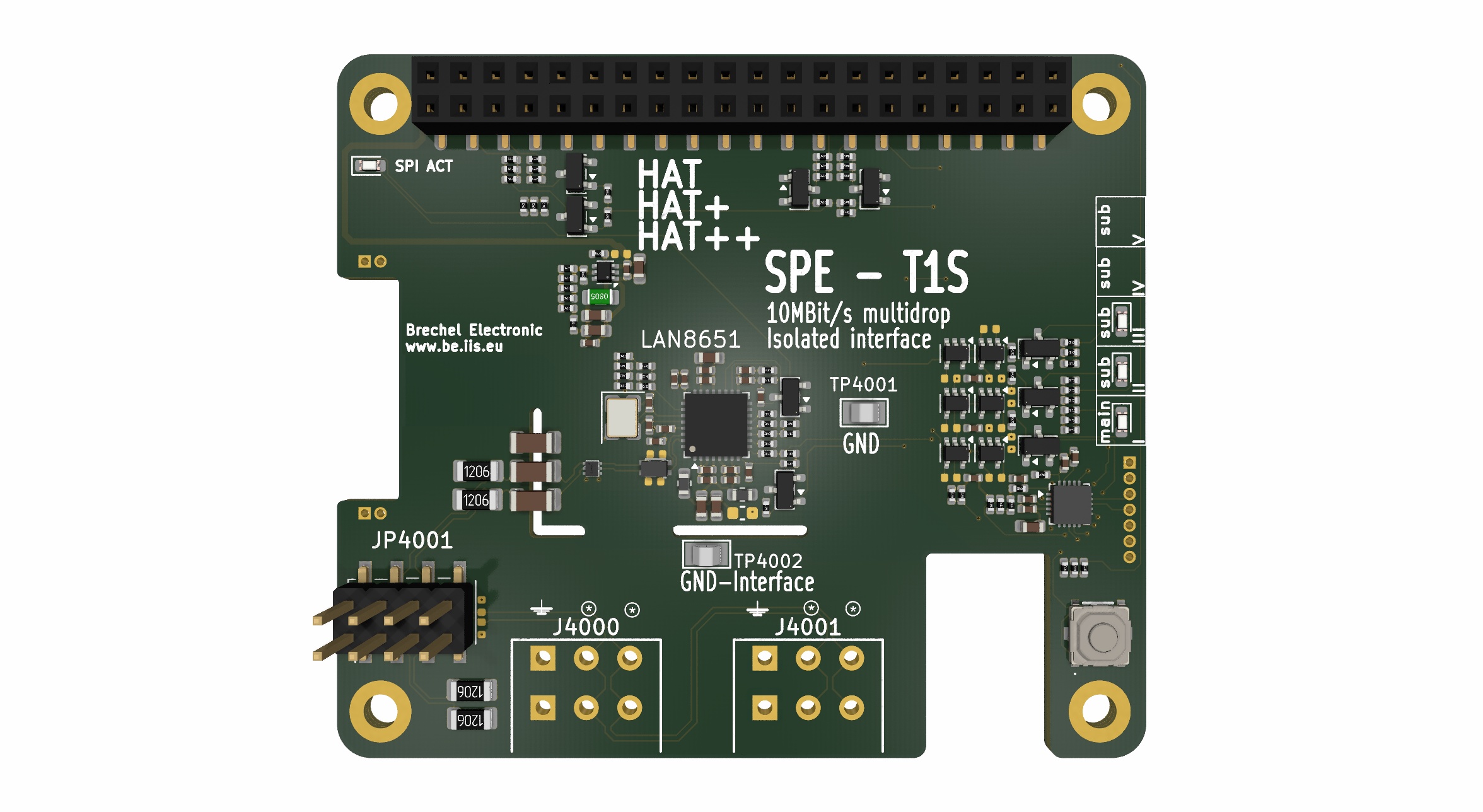

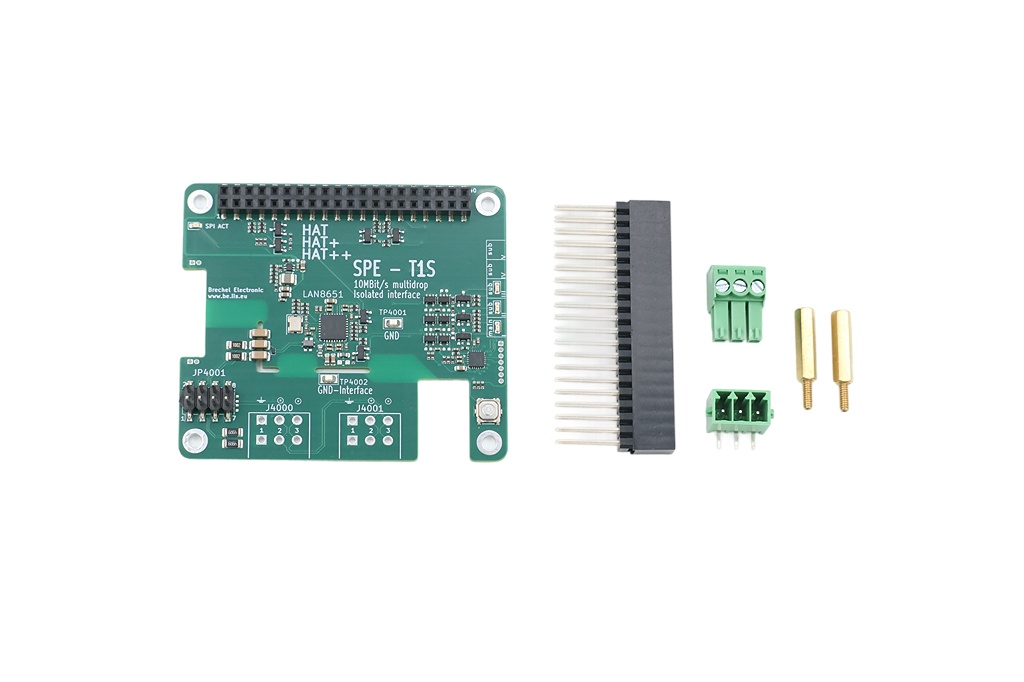

The HAT connects a Raspberry Pi to a shared 10BASE-T1S bus. Two parallel SPE connectors provide access to the bus, with jumper-selectable termination for end nodes.
View ProductBE-IIS HAT++
Isolated 10BASE-T1S Industrial Ethernet HAT++ for Raspberry Pi
In Production
10BASE-T1S (IEEE 802.3cg) enables 10 Mbit/s Ethernet communication over a single twisted pair in multidrop topologies, supporting at least 8 nodes over distances of up to at least 25 m.

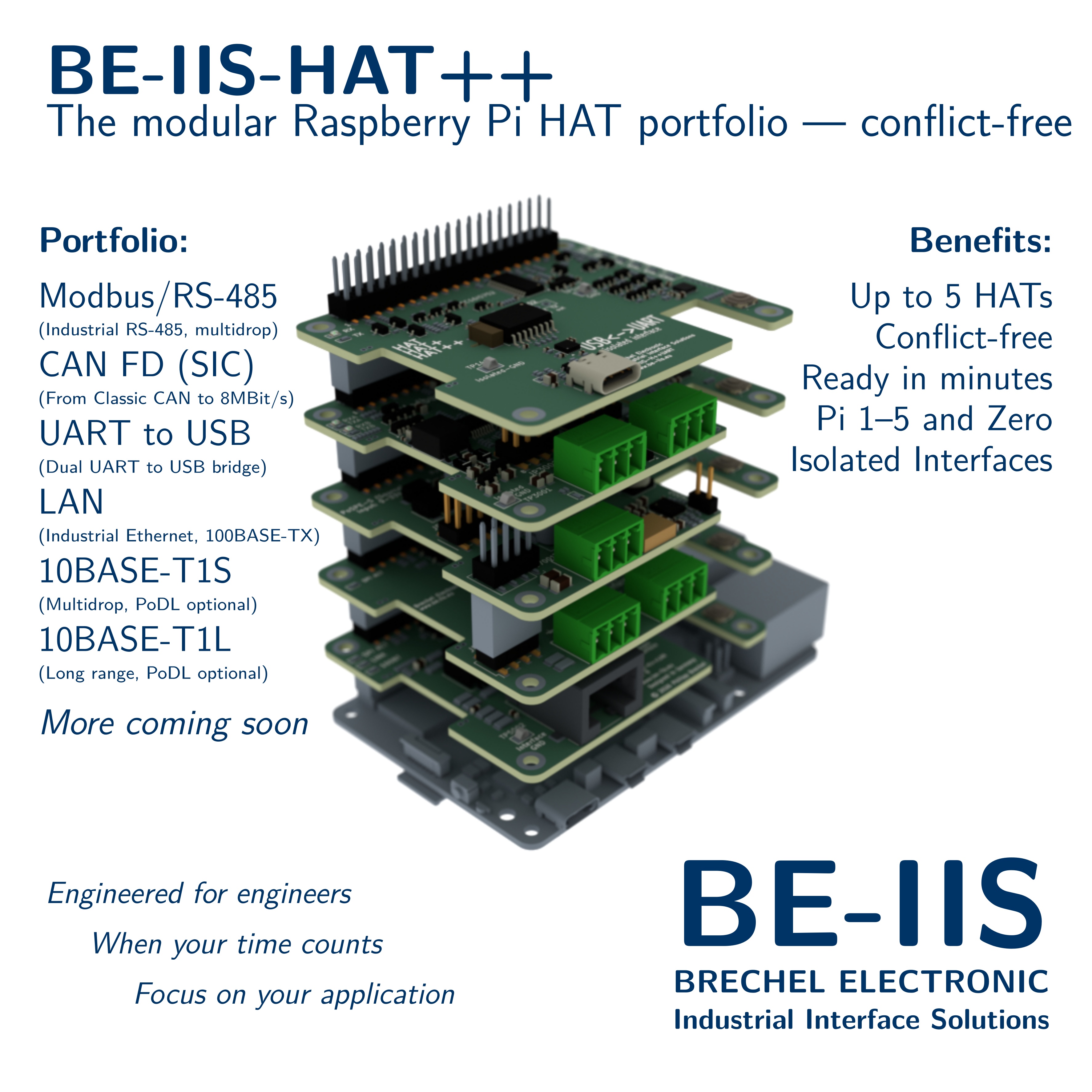

This HAT enables multidrop communication based on 10BASE-T1S Ethernet using the Microchip LAN8651 Ethernet MAC-PHY and, as part of the BE-IIS HAT++ ecosystem, is stackable with other HATs from the portfolio for seamless system expansion and simplified system integration.
Order or request a quote
Loading offer …
Quick Facts
Order Code
BE-IIS-HPP-T1S
BE-IIS-HPP-T1S
Revision
B
B
Status
In Production
In Production
Overlay
BE-IIS-HPP-T1S-I
BE-IIS-HPP-T1S-I

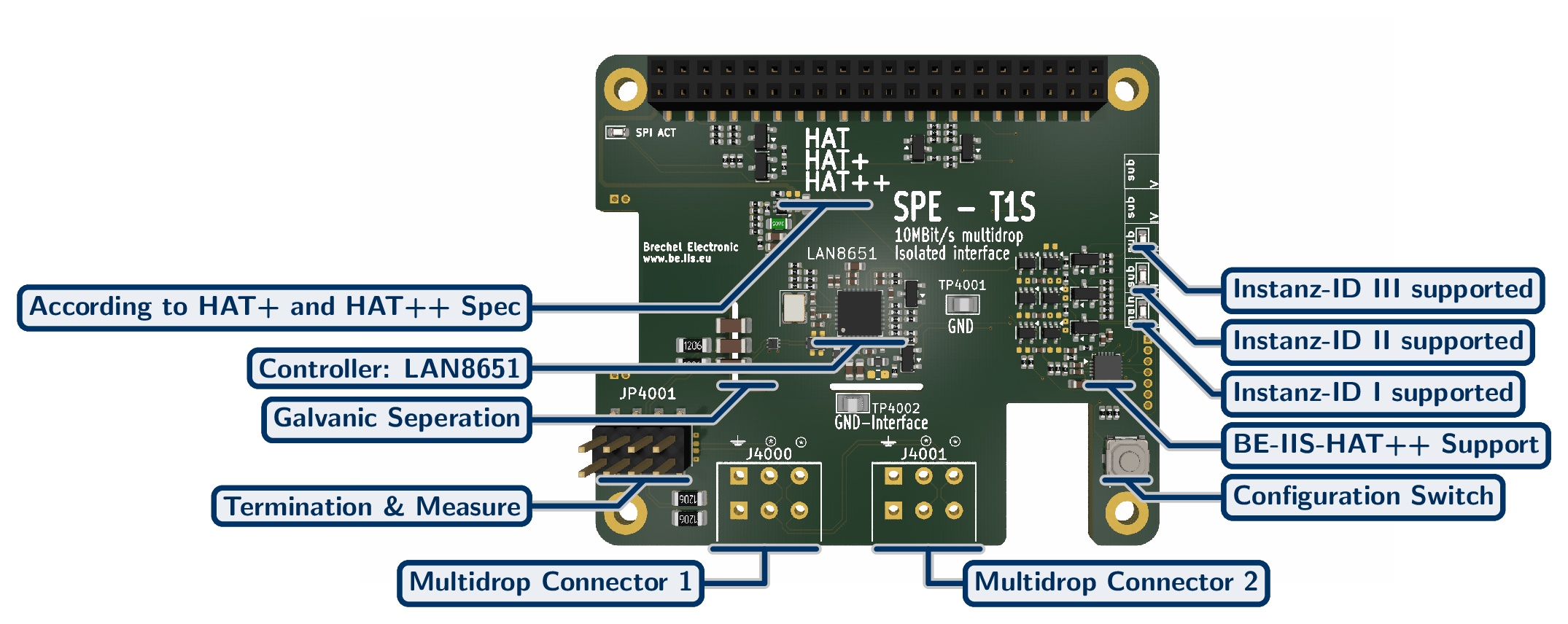

Key Features
- 10BASE-T1S compliant with IEEE 802.3cg
- LAN8651 10BASE-T1S MAC-PHY
- Galvanically isolated MDI
- Raspberry Pi HAT+ compliant (2024)
- Stackable HAT (BE-IIS-HAT++)

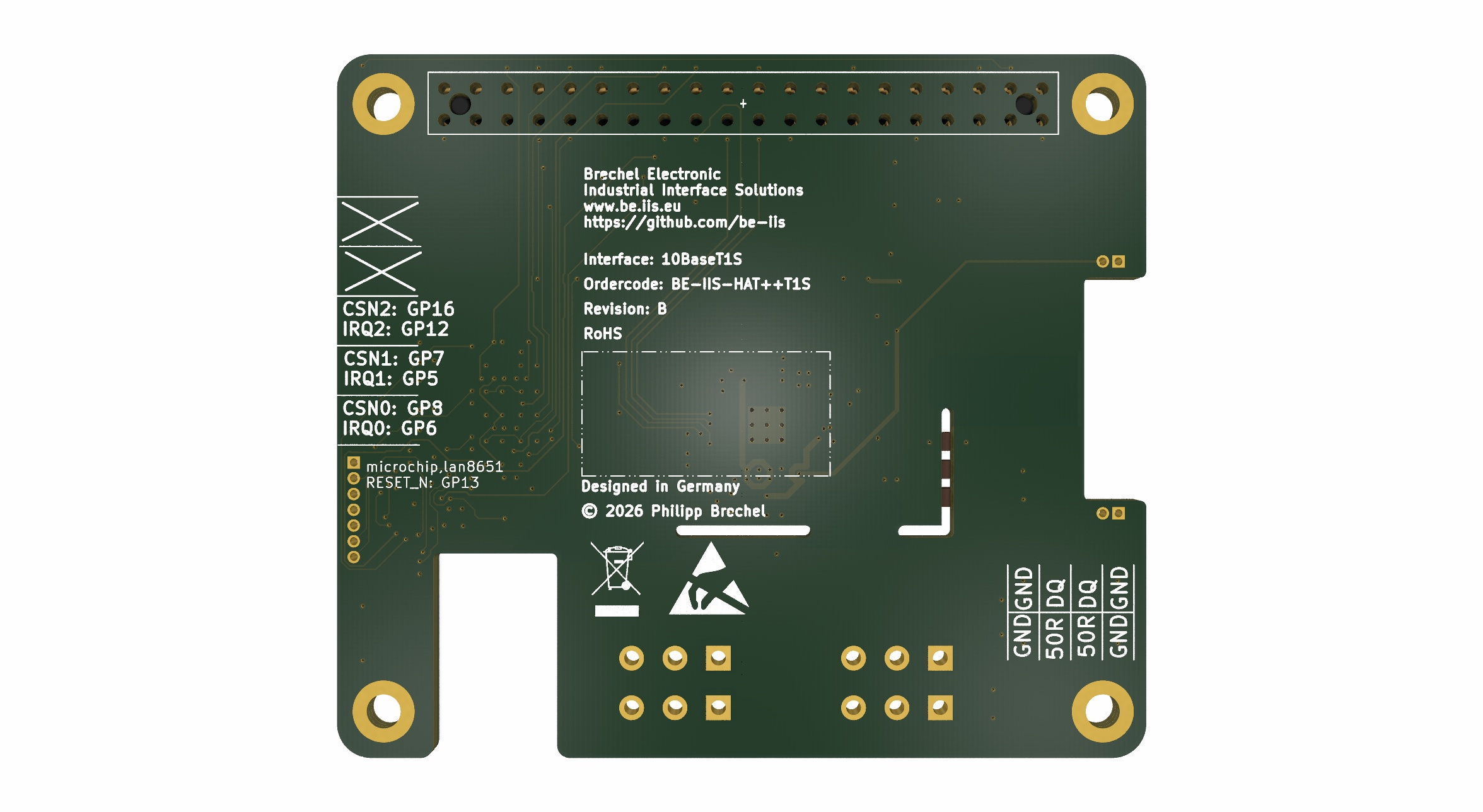

- Configurable CS and IRQ routing
- Optional PoSPE support

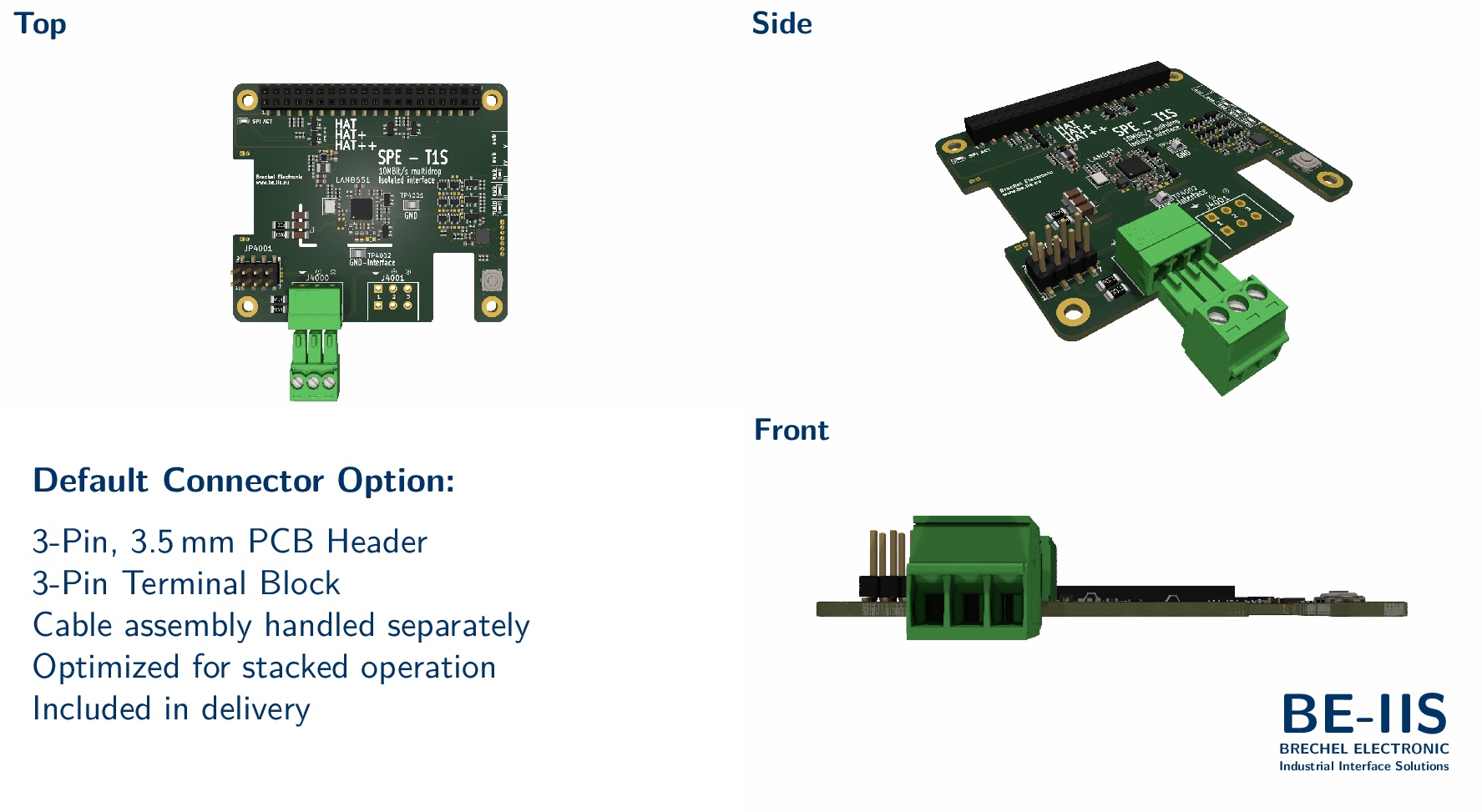

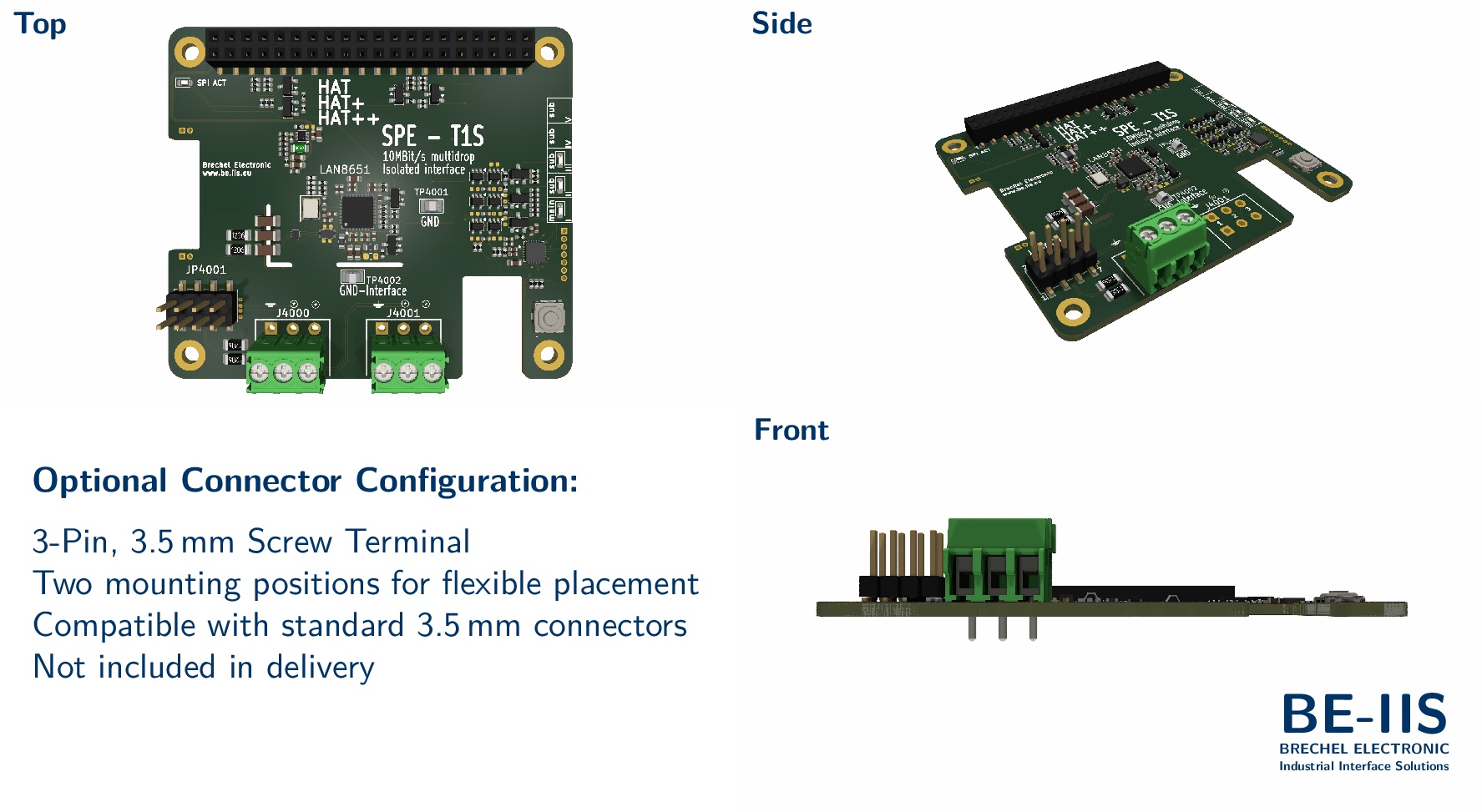

- Two connector options available
- RoHS compliant
- Quality component suppliers
Product Description
The 10BASE-T1S Industrial Ethernet HAT is a Raspberry Pi HAT+ compliant Single Pair Ethernet interface board in accordance with IEEE 802.3cg.
It integrates a LAN8651 10BASE-T1S MAC-PHY and provides galvanic isolation between the logic side and the field-side interface.
Applications
- Technology evaluation
- Industrial network evaluation
- Prototyping
- Education and laboratory use
- Switch and node evaluation
Raspberry Pi Compatibility
| Model | 32-bit | 64-bit |
|---|---|---|
| Raspberry Pi 2 | ✓ | |
| Raspberry Pi 3 | ✓ | ✓ |
| Raspberry Pi 4 | ✓ | ✓ |
| Raspberry Pi 5 | ✓ | ✓ |
| Raspberry Pi Zero | ✓ | |
| Raspberry Pi Zero 2 W | ✓ | ✓ |
Compatibility depends on the installed operating system, kernel version and enabled interfaces.
HAT Compatibility
| Standard | Supported |
|---|---|
| HAT | ✓ |
| HAT+ | ✓ |
| HAT++ | ✓ |
Related Products
Isolated 10BASE-T1S Industrial Ethernet HAT++ for Raspberry Pi
The HAT connects a Raspberry Pi to a shared 10BASE-T1S bus. Two parallel SPE connectors provide access to the bus, with jumper-selectable termination for end nodes.
View Product
Power over SPE (PoSPE) Industrial HAT++ Add-on for Raspberry Pi
The PoSPE HAT is a Raspberry Pi HAT+ compliant interface board providing DC power coupling to the Single Pair Ethernet data line via an integrated low-pass filter. It supports current measurement via I²C, includes voltage and current protection for the power source, and provides a regulated +5 V supply for the Raspberry Pi.
View Product
Isolated 100BASE-TX Industrial Ethernet HAT++ for Raspberry Pi
The Ethernet Industrial HAT is a Raspberry Pi HAT+ compliant interface board providing standard 10BASE-T / 100BASE-TX connectivity according to IEEE 802.3.
View Product
Isolated 10BASE-T1L Industrial Ethernet HAT++ for Raspberry Pi
The 10BASE-T1L Industrial Ethernet HAT is a Raspberry Pi HAT+ compliant Single Pair Ethernet interface board in accordance with IEEE 802.3cg.
View Product
Isolated 10BASE-T1L Industrial Ethernet HAT++ Switch for Raspberry Pi
The 10BASE-T1L Industrial Ethernet HAT is a Raspberry Pi HAT+ compliant Single Pair Ethernet interface board designed in accordance with IEEE 802.3cg.
View Product
Datasheet – PCB Header (691305130003)
Three-position pluggable terminal connector set, consisting of one screwless push-in cable plug and one matching THT PCB header. Suitable for wiring industrial interfaces such as 10BASE-T1S, 10BASE-T1L, Modbus/RS-485 and CAN where a compatible 3.5 mm terminal connector is used. Supplied as a set of two components. Please verify the PCB footprint before using the header as a replacement.
View Product
LEONI Dacar 546 – 100 Ω Data Cable
Industrial data cable suitable for 10BASE-T1S and 10BASE-T1L Single Pair Ethernet applications. Characteristic impedance: 100 ± 10 Ω. Conductor cross-section: 2 × 0.35 mm². Sold in 10 m increments and supplied as one continuous, uncut length without connectors. Online orders are limited to 200 m. For longer lengths, please contact BE-IIS.
View Product
