BE-IIS HAT++

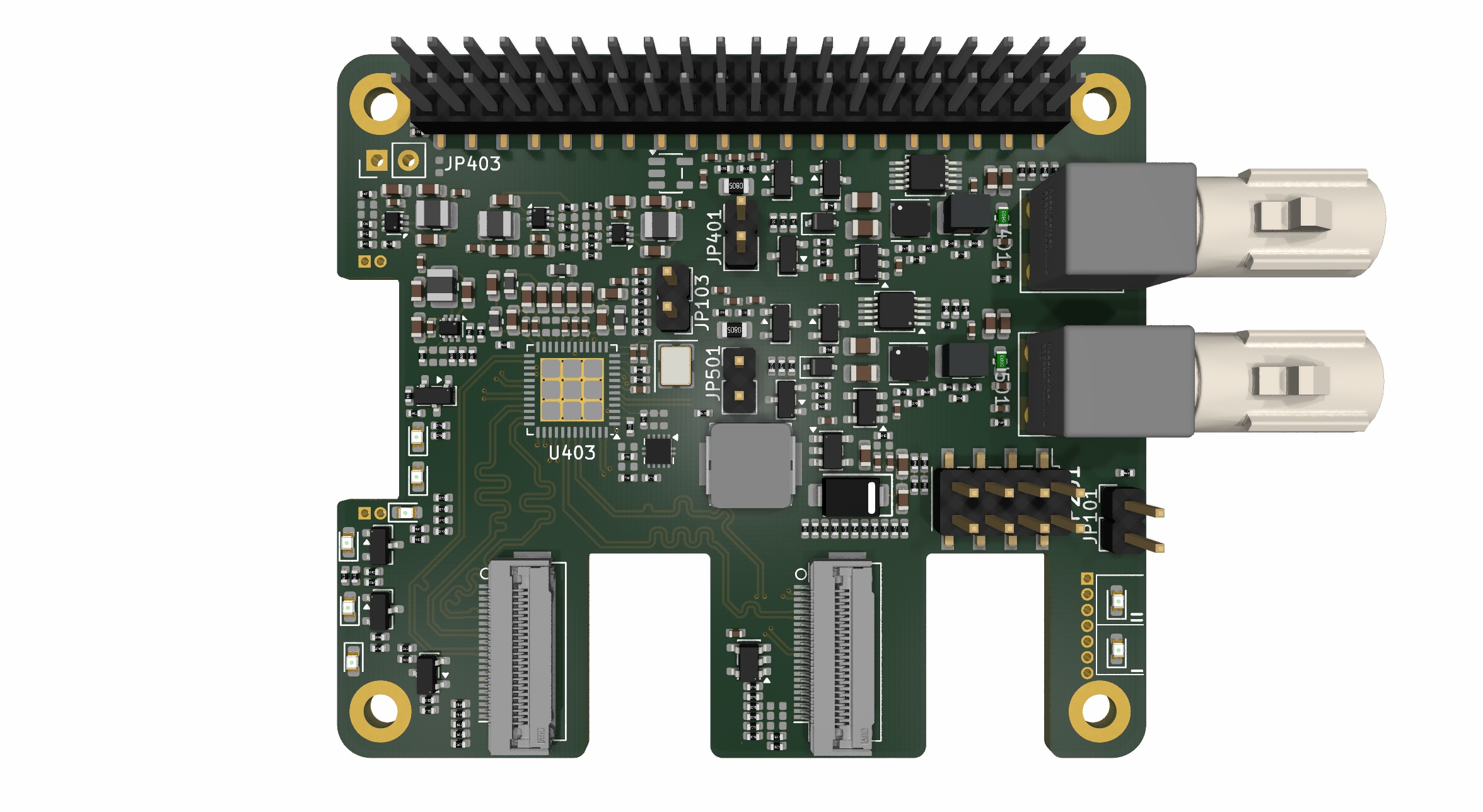

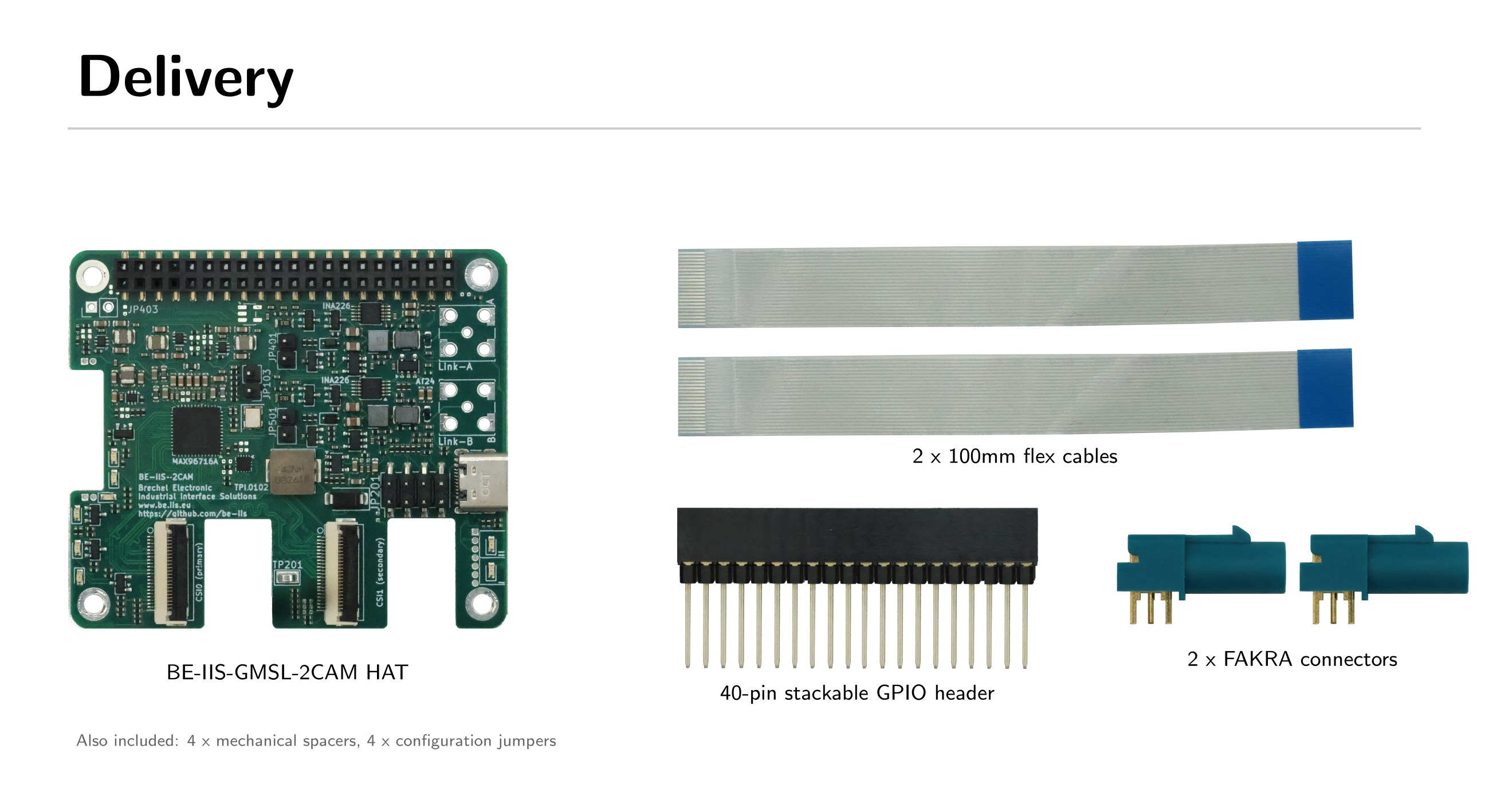

GMSL2 Camera HAT for Raspberry Pi
In development
GMSL2 enables high-speed camera links over a single automotive cable, allowing image sensors to be placed remotely from the processing unit.

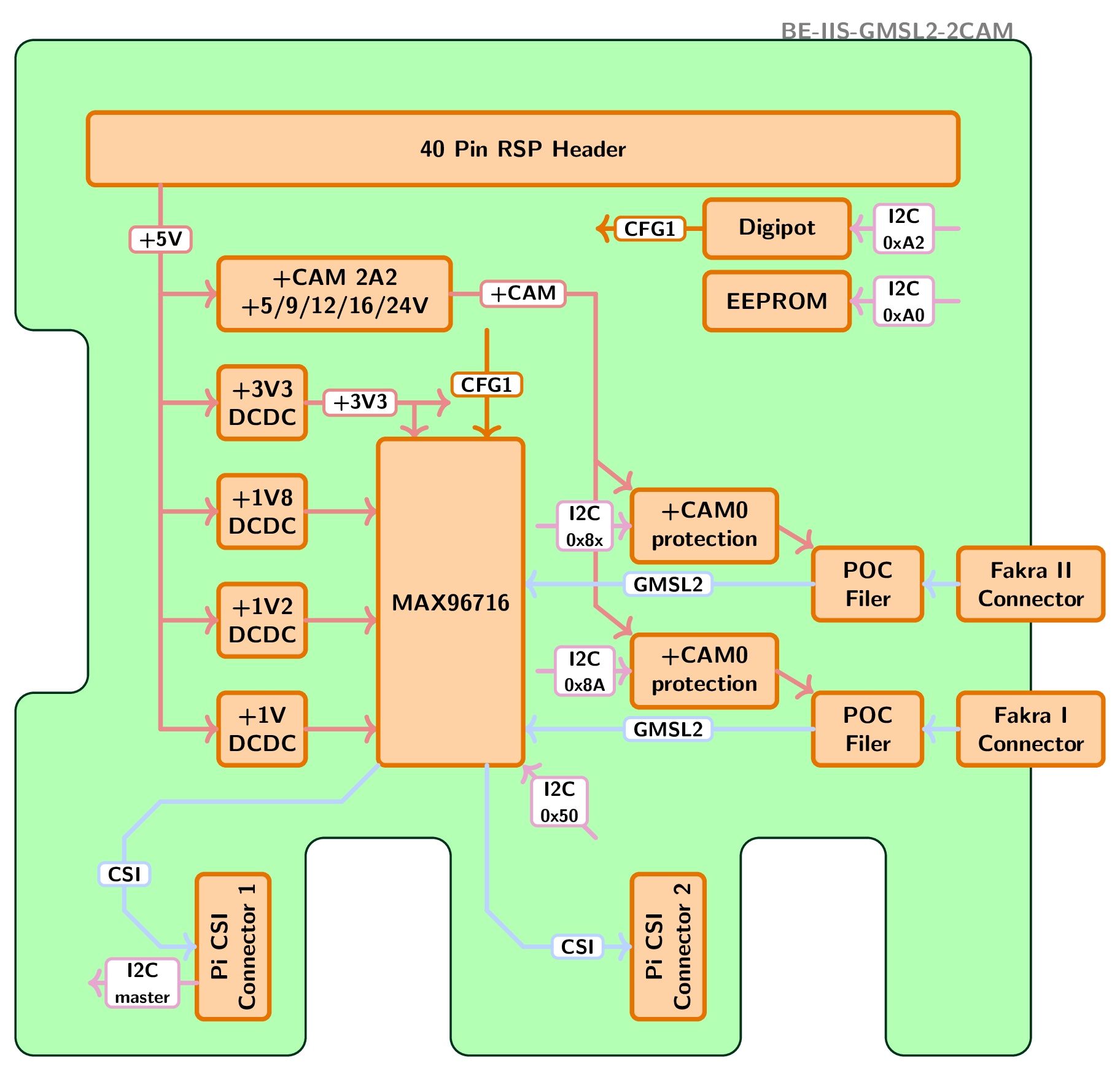

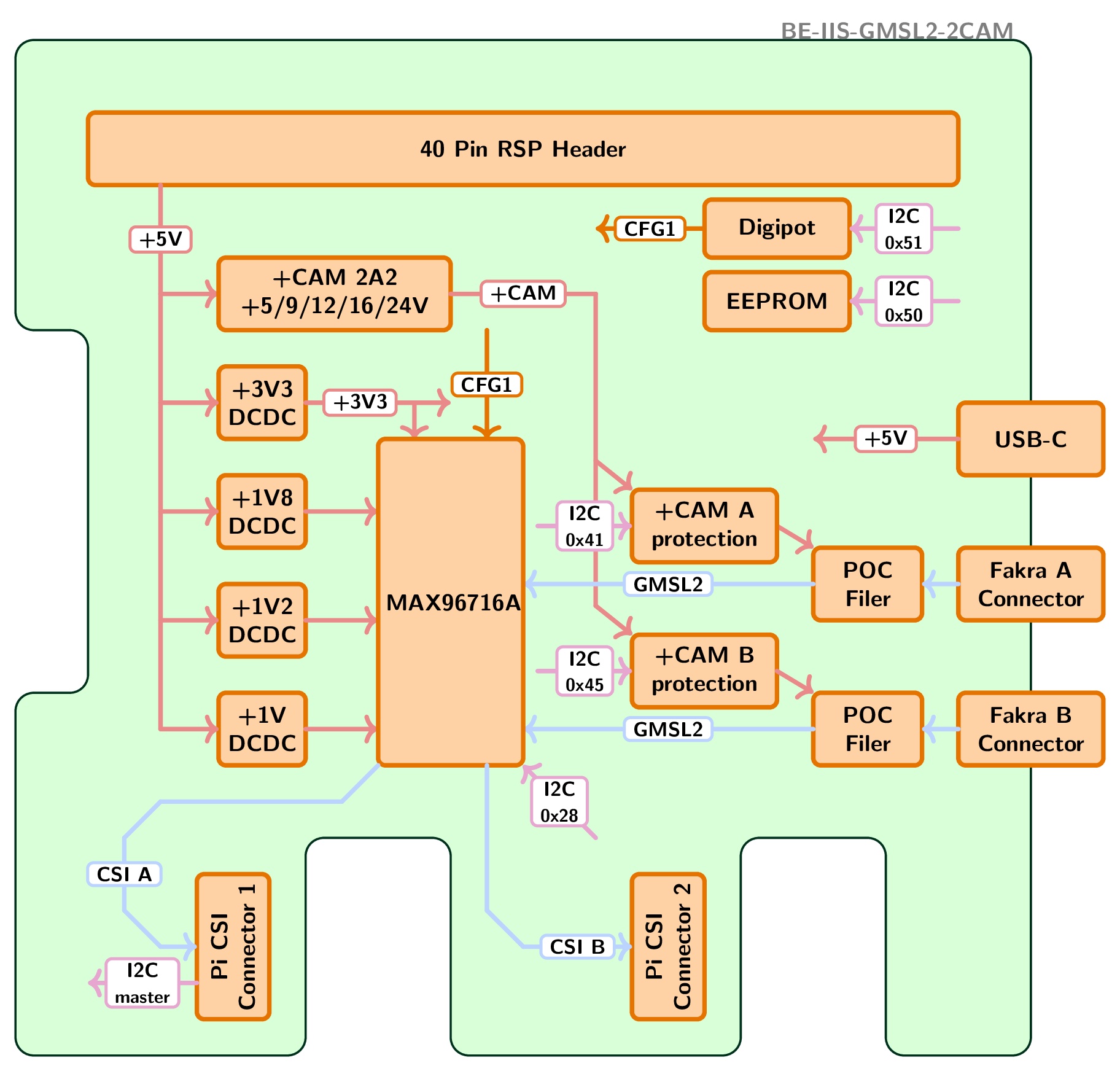

This HAT enables the connection of two GMSL2 camera to a Raspberry Pi using a dedicated GMSL2 deserializer and CSI-2 video output.
Quick Facts
Order Code
BE-IIS-GMSL2-2CAM
BE-IIS-GMSL2-2CAM
Revision
A
A
Status
In development
In development
Overlay
BE-IIS-GMSL2-2CAM-I
BE-IIS-GMSL2-2CAM-I
Key Features
- Dual GMSL2 camera input
- MAX96716 GMSL2 deserializer
- Raspberry Pi CSI interface compatible
- Single and Dual HAT Operation
- Multiple Camera Power Supply Voltages
- PoC Filter and Protection
- Rosenberger FAKRA connector
- RoHS compliant
- Quality component suppliers
Applications
- GMSL2 camera evaluation
- Automotive camera prototyping
- Industrial vision evaluation
- Raspberry Pi based video capture
- Sensor and imager bring-up
- Education and laboratory use
- Stereo Camera Evaluation
Raspberry Pi Compatibility
| Model | 32-bit | 64-bit |
|---|---|---|
| Raspberry Pi 2 | ✕ | ✕ |
| Raspberry Pi 3 | ✕ | ✕ |
| Raspberry Pi 4 | ✕ | ✕ |
| Raspberry Pi 5 | ✓ | ✓ |
| Raspberry Pi Zero | ✕ | ✕ |
| Raspberry Pi Zero 2 W | ✕ | ✕ |
Compatibility depends on the installed operating system, kernel version and enabled interfaces.
HAT Compatibility Level
| Level | Description | Configuration |
|---|---|---|
| HAT | Standard Raspberry Pi HAT behaviour | Standard Raspberry Pi HAT form factor |
| HAT+ | Raspberry Pi HAT+ auto-detection mechanism | HAT+ EEPROM populated; connected to the I2C interface of the CSI connector |
| HAT++ | BE-IIS stackability and full board detection concept | HAT++ stack detection is not implemented; the board is designed to operate alongside HAT++ boards |
