BE-IIS HAT++ Portfolio Overview
Compact portfolio overview

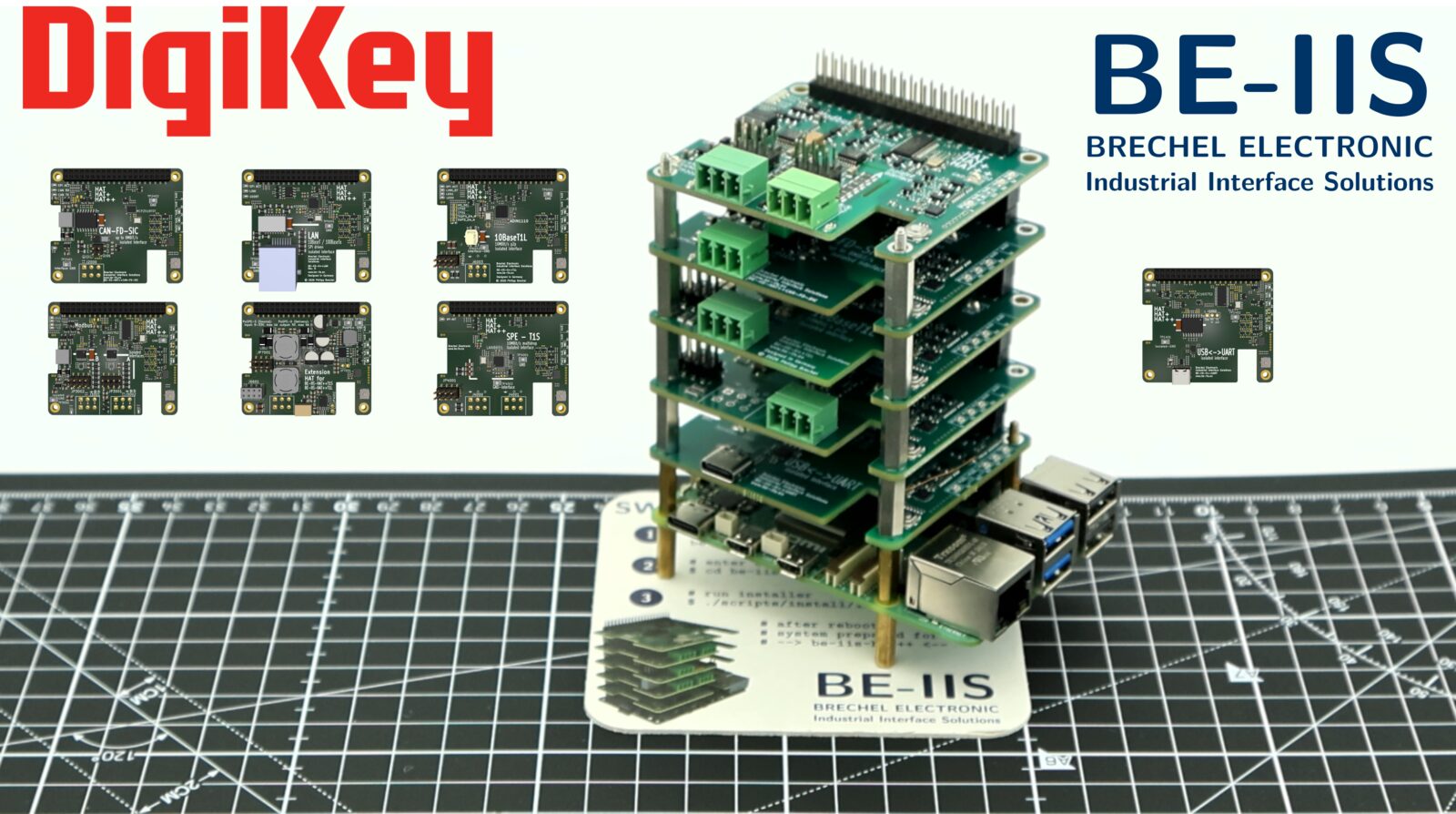

The BE-IIS HAT++ Portfolio One-Pager gives a compact overview of the current BE-IIS product portfolio.
It summarizes the available and planned Raspberry Pi HAT++ boards for industrial interface applications.
The document is intended for distributors, customers, reviewers and anyone who wants a quick first impression of the BE-IIS HAT++ ecosystem.
What is included?
The one-pager gives a short overview of the current BE-IIS HAT++ boards, including:
- 10BASE-T1L Single Pair Ethernet
- 10BASE-T1S multidrop Single Pair Ethernet
- CAN FD with SIC transceiver
- RS-485 / Modbus
- Ethernet
- UART
- Power over Single Pair Ethernet concepts
It also explains the basic idea behind the HAT++ system:
several industrial interface boards can be combined in one Raspberry Pi stack with predictable hardware resources and reproducible Linux integration.
Why this matters
Many Raspberry Pi extension boards are designed as single-function HATs.
That works well for simple setups, but many real industrial and embedded applications need more than one interface at the same time.
A system may need Ethernet, CAN FD, RS-485, 10BASE-T1L or 10BASE-T1S in one compact setup.
BE-IIS HAT++ is designed for this use case.
The goal is to make Raspberry Pi based interface systems easier to build, easier to reproduce and easier to integrate.
Who is it for?
The portfolio overview is useful for:
- distributors looking for new industrial Raspberry Pi products
- engineers evaluating interface options
- developers building gateways, converters or test setups
- makers and professionals working with industrial communication
- companies looking for compact Single Board Computer interface solutions
Product concept
BE-IIS HAT++ boards are designed as part of a common system.
The focus is not only on the individual interface function, but also on how several boards can work together.
Key ideas are:
- stackable Raspberry Pi HAT++ concept
- defined hardware resource assignment
- Linux Device Tree overlay integration
- open installer concept
- reproducible setup
- industrial interface focus
This makes the system useful for prototypes, lab setups, demonstrations and small industrial applications.
Download the one-pager
Use the download button at the top of this page to get the current BE-IIS HAT++ Portfolio One-Pager as PDF.
The document gives a quick overview of the product family and can be shared with customers, distributors or project partners.
More information
More technical information is available on the BE-IIS website.
Product pages include additional resources such as datasheets, schematics, layout views and 3D files.
The Linux integration sources and Device Tree overlay files are available in the public GitHub installer repository.
- Website: https://www.be-iis.eu
- GitHub: https://github.com/be-iis/be-iis-installer
- DigiKey supplier page: https://www.digikey.de/en/supplier-centers/industrial-interface-solutions
